Selecting the Right Replacement Capacitor: A Guide for Kiwi Electronics Enthusiasts

Posted by Lucas Smith on

G'day, fellow Kiwis! Whether you're a seasoned electronics engineer or a hobbyist working on a DIY project in your garage in Wellington or Auckland, choosing the right replacement capacitor is crucial. Let's demystify the process together.

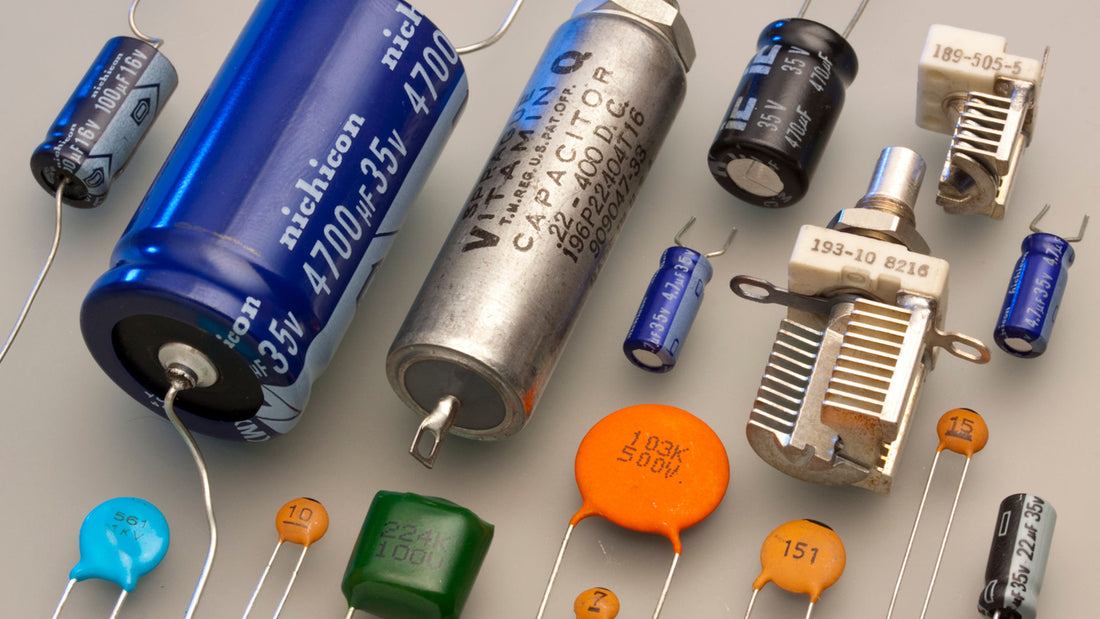

A range of capacitor types

Understanding the Basics

Capacitors are akin to the unsung heroes of the electronic world. These little components store and release electrical energy, playing a pivotal role in many electronic devices. However, like all things, they can wear out or fail, necessitating a replacement. But not all capacitors are created equal. Selecting the right replacement is more than just matching numbers.

1. Capacitance Value

The capacitance value, often measured in microfarads (µF), nanofarads (nF), or picofarads (pF), is your starting point. Ensure your replacement has the same capacitance value as the original. This value is a measure of the capacitor's storage capacity.

2. Voltage Rating

The voltage rating is like the "maximum safe speed" for your capacitor. A higher voltage rating is generally safe, but going lower can be risky. Think of it like the speed limit on the Southern Motorway – you wouldn't want to exceed it!

3. Tolerance

Tolerance is the wiggle room. A 100µF capacitor with a ±10% tolerance, for instance, has an actual value between 90µF and 110µF. It's okay to opt for a replacement with the same or a tighter tolerance.

4. Type Matters

From ceramic to tantalum, the type of capacitor can influence its behavior in a circuit. It's typically best to stick to the same type, especially if you're unsure about the intricacies of capacitor types.

5. Temperature Rating

New Zealand's climate varies, but your capacitor's performance shouldn't. Ensure your replacement can handle the temperature range it will be exposed to.

6. ESR (Equivalent Series Resistance)

For those deep in the electronics world, ESR can be a vital parameter, especially in power circuits. If the original capacitor touted a low ESR, aim for a similar value in the replacement.

7. Size and Fit

Just like finding the right-sized jandals, your capacitor should fit snugly in its designated spot. This includes the lead spacing and the physical dimensions.

8. Polarity Awareness

Remember, some capacitors have a positive and a negative terminal. Incorrectly placing a polarized capacitor is like driving on the wrong side of the road – it's a disaster waiting to happen!

Safety First, Kiwis!

Choosing the right capacitor is only half the battle. Here are some safety tips to keep in mind:

  • Power Down: Always switch off and unplug your device before starting.

  • Discharge Capacitors: Capacitors can hold a charge even when the power's off. Use a resistor or a specialized tool to safely discharge them before handling.

  • Mind the Polarity: Incorrectly placing a polarized capacitor can lead to failures or even explosions.

  • Seek Expertise: If in doubt, don't hesitate to consult an electronics expert or join local forums to ask fellow Kiwis.

Wrapping Up

From Dunedin to Hamilton, electronics enthusiasts across New Zealand share a passion for creating and repairing. By understanding the nuances of capacitor selection, we can ensure our projects not only work but also stand the test of time. Keep tinkering, stay curious, and always put safety first!
