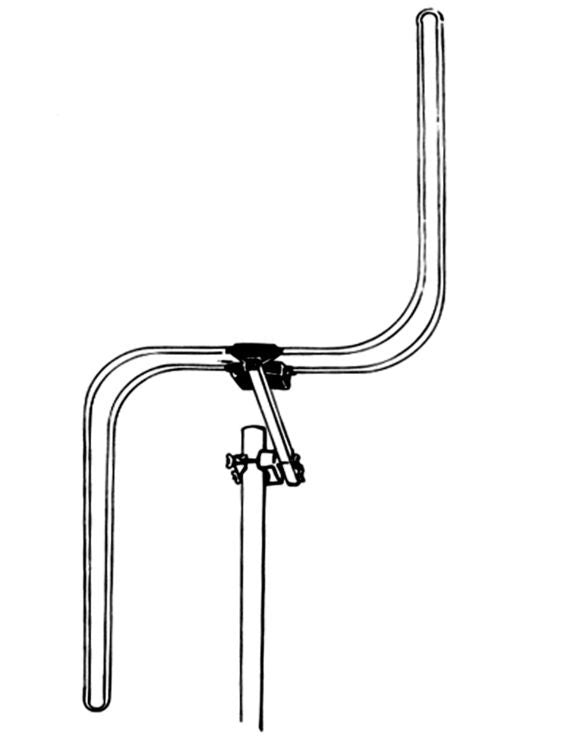

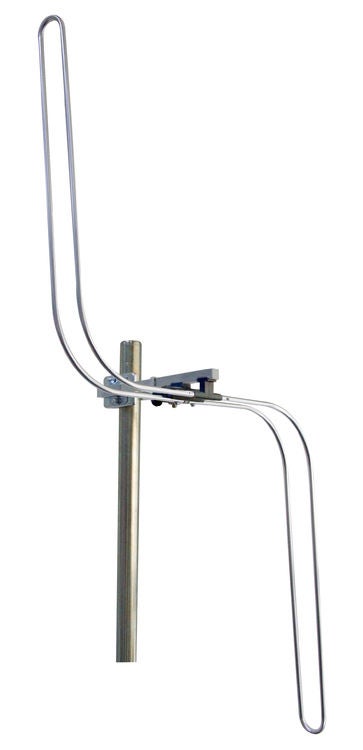

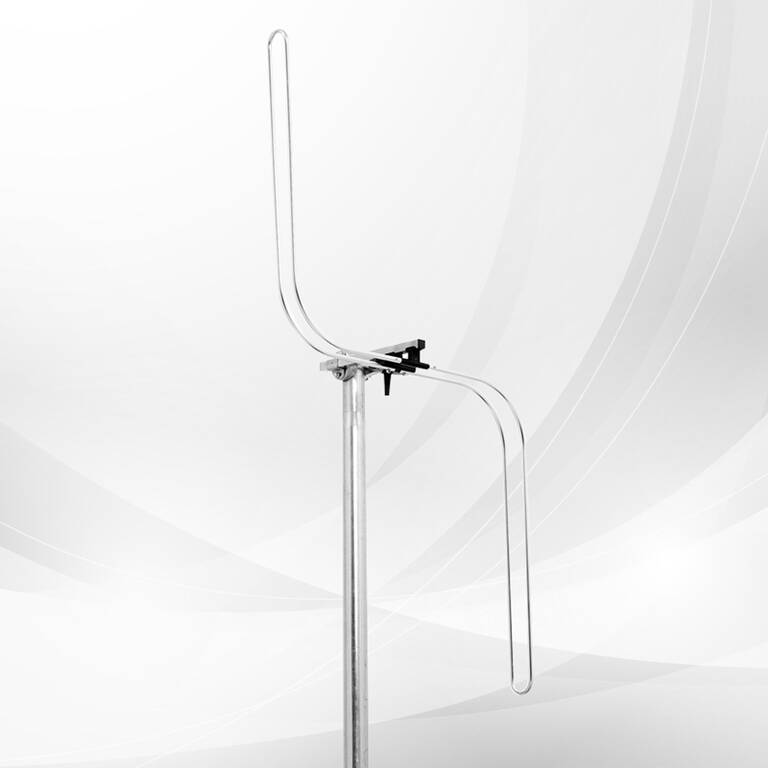

Z-Shaped Outdoor FM Radio Antenna 87–108 MHz 3 dB Gain with F-Connector

The Z-shaped outdoor FM radio antenna is a 3 dB gain aerial designed for reception across the 87–108 MHz broadcast band. Its unique Z-style form factor is engineered to receive both vertical and horizontal radio signals, making it a versatile choice for improved FM reception on compatible tuners, stereo receivers, and audio systems with an F-Connector antenna input.

The Z-Shaped Outdoor FM Radio Antenna 87–108 MHz 3 dB Gain is also known as a Z-style FM aerial, vertical and horizontal FM antenna, outdoor FM radio aerial, Z-type FM antenna, wideband FM aerial, external FM receiver antenna, F-Connector radio antenna.

Benefits

This Z-shaped outdoor FM antenna is a specialised solution for tech enthusiasts and audio listeners who need reliable FM reception across different signal polarisations.

• Vertical & Horizontal (H/V) Reception: The Z-shaped design is optimised to pick up both vertically and horizontally polarised FM signals, which is ideal for areas with mixed transmission types or local radio stations.
• Improved 3 dB Gain: Offers a defined gain rating for better signal capture compared to basic indoor wire aerials.
• Durable Aluminium Construction: Built from lightweight yet sturdy aluminium for long-term outdoor installation.
• F-Connector Termination: Uses a standard F-type connector for a secure, low-loss connection to your coaxial cable and receiver.
• Wide Frequency Coverage: Covers the full 87–108 MHz FM broadcast band used in New Zealand.
• Flexible Mounting: Includes a bracket compatible with antenna masts up to 60 mm in diameter.

Features of the Z-Shaped Outdoor FM Radio Antenna:

• Z-shaped design for Vertical and Horizontal (H/V) reception
• 87–108 MHz FM broadcast frequency range
• 3 dB gain rating
• Durable aluminium construction
• F-Connector connection
• Suitable for external mast mounting (up to 60 mm)
• Passive antenna (no power supply required)
• 1 Year Techexpress New Zealand Guarantee

Applications for the Z-Shaped Outdoor FM Radio Antenna:

• Home stereo and Hi-Fi receivers
• Workshop and garage radio setups
• Rural FM radio reception
• Reception of local and national FM stations
• Office audio system improvements
• SDR (Software Defined Radio) projects
• DIY radio and electronics setups

Compatibility

This antenna is designed for the 87–108 MHz FM broadcast band and is compatible with FM radio receivers, stereo tuners, and radio equipment that features an external antenna input.

It is particularly suited to installations where a single antenna needs to handle both horizontal and vertical signal polarisations. While many New Zealand FM stations use vertical polarisation, others may vary, and the Z-shape provides a broader reception profile.

This antenna does not support AM radio, digital TV, satellite, Wi-Fi, or cellular signals.

While unfamiliar with your devices, we offer a 14-day 'trial and return for refund less shipping fee' service to enable testing in your environment with your equipment.

Technical Specifications

Compatibility
• Compatibility: FM radio receivers and stereo tuners with antenna inputs
• Signal Type: Vertical and Horizontal (H/V) polarisation
• Not Compatible With: AM radio, Digital TV (UHF), Wi-Fi, Cellular, Satellite

Connectivity
• Connector Type: F-Connector (Female)
• Impedance: 75 Ω
• Interface / Standard: FM Broadcast (Band 87–108 MHz)

Performance
• Frequency Range: 87–108 MHz
• Gain: 3 dB
• Front-to-Back Ratio: 0 dB (Omnidirectional characteristics)
• Polarisation: Vertical and Horizontal

Physical Specifications
• Product Type: Z-Shaped Outdoor FM Antenna
• Material: Aluminium
• Mounting: Mast bracket for poles up to 60 mm diameter
• Weight: Approx. 0.9 kg to 1 kg (packaged)
• Dimensions: 69.5 × 24.5 × 7.5 cm (packaged)

⚠️ Limitations

• FM Reception Only: Specifically tuned for the 87–108 MHz FM band. Not for AM, TV, or satellite use.
• Reception Varies: Terrain, building materials, and distance from transmitters will affect final performance.
• Assembly/Installation: Requires secure mounting to an antenna mast (not included).
• Coaxial Cable Required: Does not include coaxial cable or lead-in wire. Coaxial cable is not included and must be supplied separately.
• Adapter May Be Required: Receivers with PAL/Belling-Lee, screw terminal, 3.5 mm, or 300 Ω twin-lead antenna inputs may require a suitable adapter or balun.

Package includes: 1x Z-Shaped Outdoor 87–108 MHz FM Radio Antenna.

*Does not include a pole or cable. The image is for illustrative purposes only. Due to variations in camera settings, lighting, manufacturing processes, monitors, and supply, colours may differ. Product appearance and specifications are subject to change without notice.
