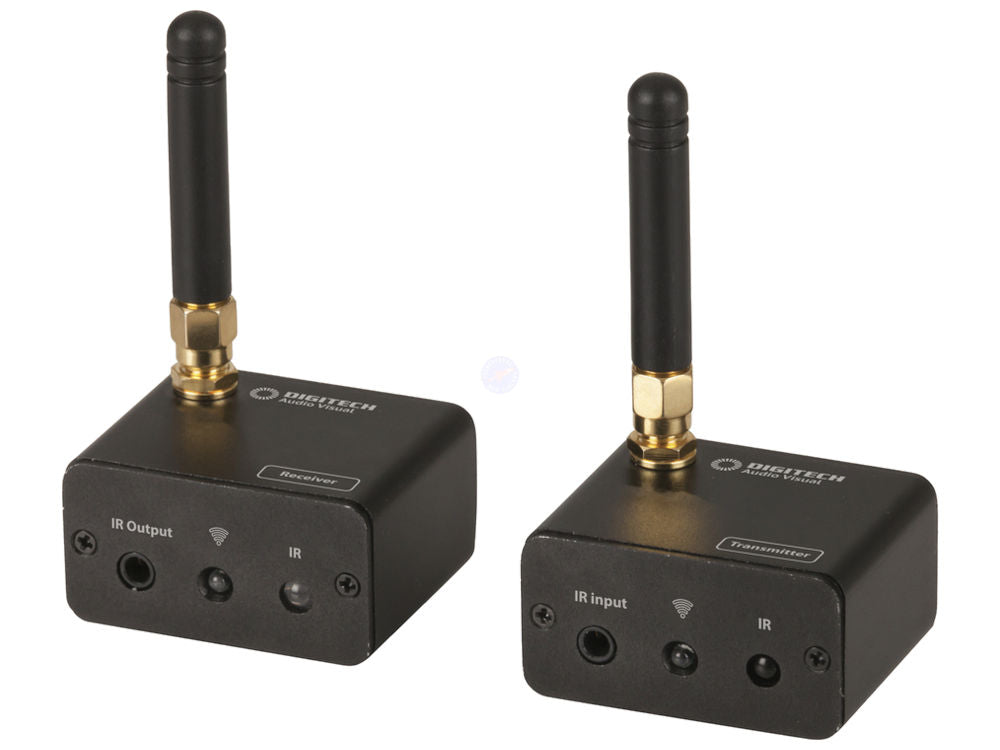

Wireless Infrared Remote Control Extender

Wireless Infrared Remote Control Extender.

Remote Control Extender.

• Wireless RF Range is 50m.
• Built-in and Wired IR TX and RX.
• Relays you Remote Control through Walls or Cupboard.

Wirelessly control your video sources such as cable TV, streaming boxes or Blu-Ray/DVD players from another room. Infrared remote controls usually have an effective range of only 5-10m, however this extender allows you to use your remote control on devices up to 50m away!

Features in-built infrared ports for easy operation and infrared extension cables if you have devices hidden inside a wall or TV cabinet. Supports up to 4 receivers with the purchase of additional kits for control to one or more TVs from the one source.

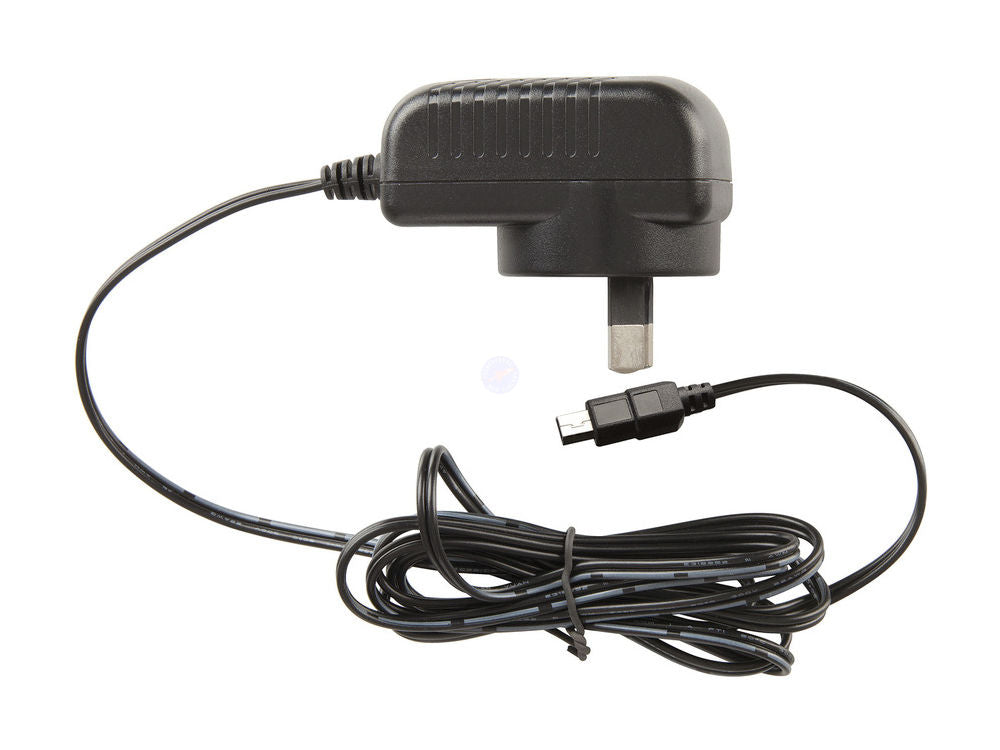

Perfect for controlling a source device which is being displayed in a bedroom, garage, conference room or an outside entertainment area. Includes infrared emitter cable, infrared receiver cable and two mains power adaptors.

Note: Supports up to 4 receivers with the purchase of additional kits for control to one or more TVs from the one source.

Note: Transmission distance varies depending upon the obstacles in between the transmitter and receiver such as walls or solid objects.

Specifications:

Transmission frequency: 433.0MHz.
Transmission range: 50 Meter.
Receiver Antenna Style: Stub.
Transmitter Antenna Style: Stub.
Mains Connection Type: Mains AU/NZ 2 Pin (No Earth).
PSU Output Lead Length: 1.2 Meter.
Included PSU Rated for AU Mains: Yes.
Included PSU Rated for US Mains: Yes.
Included PSU Auto-selects voltage: Yes.
DC Plugpack Voltage: 5V.
DC Current Draw: 60mA.

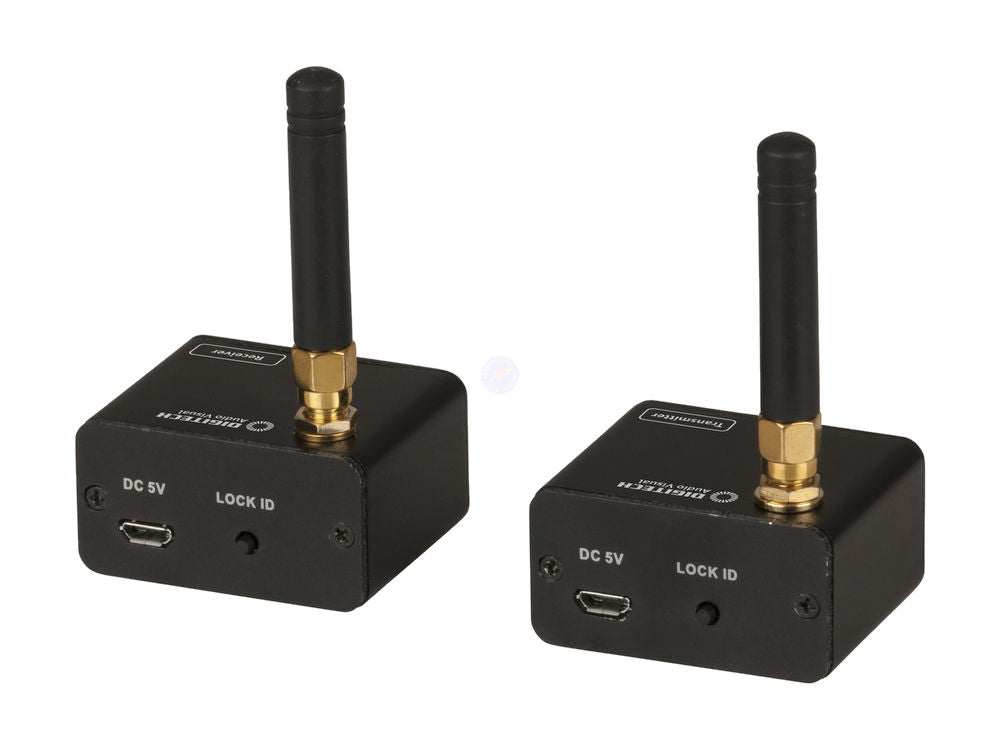

Item Connection: USB Micro Type B.
Suitable PSU Included: Yes.
USB Voltage Input: 5V.
USB Input Current: 60.0mA.
USB Item Connection: Micro B USB.
Switcher/Converter Type: IR Extender.
Power Requirement: External Power Required.
Extender Type: RF Wireless.
Maximum Range: 50 Meter.
IR Signal Fequency Compatibility: 20kHz, 60kHz.

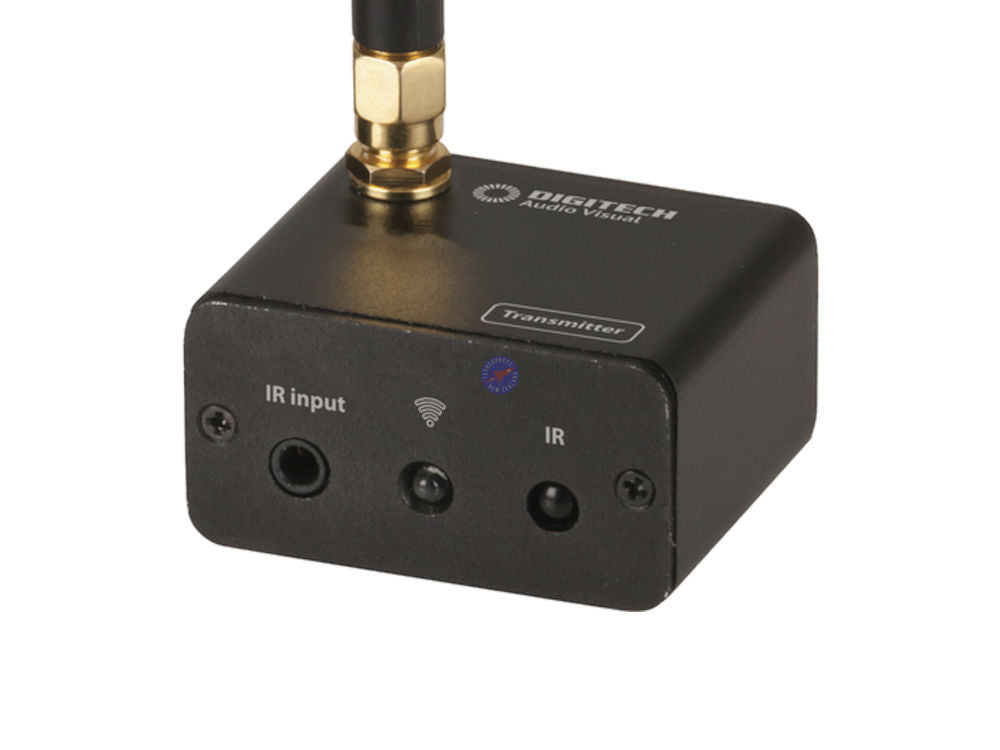

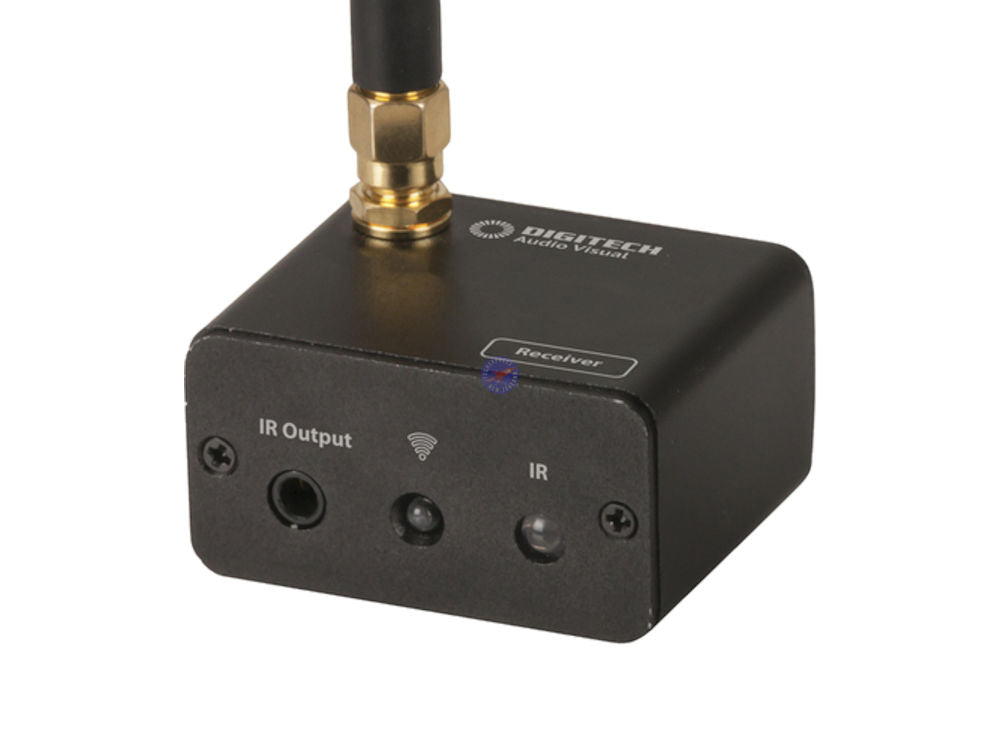

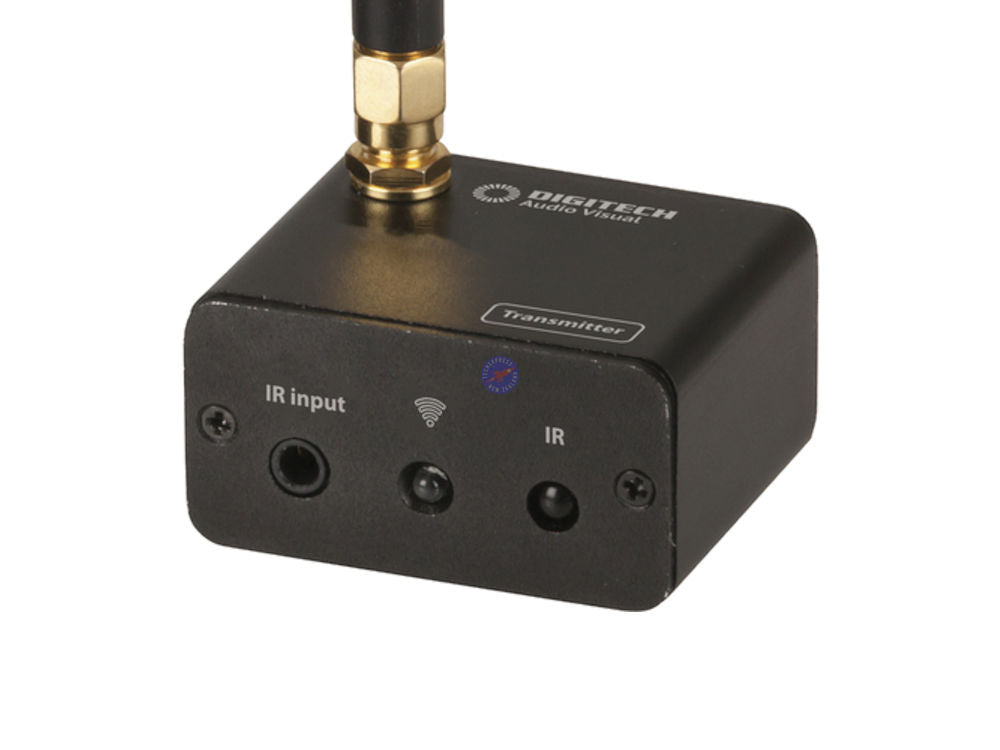

IR Input Location: On board / built-in, Remote wired sensor.
IR Input Range: 5 Meter.
IR Output Range: 5 Meter.
Foxtel IQ Compatible: Yes.

Width: 95.0mm.
Height: 20.0mm.
Depth: 121.0mm.
Weight: 40g.

Download User Manual: 💾
