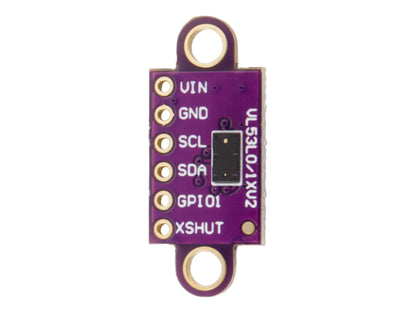

VL53L0X Time-of-Flight Laser Distance Sensor Module – I2C ToF Lidar for Arduino, ESP32 & Raspberry Pi

The VL53L0X Time-of-Flight (ToF) Laser Distance Sensor Module is a compact, high-precision distance measurement module based on STMicroelectronics FlightSense™ technology. Unlike traditional infrared distance sensors, the VL53L0X measures distance using a laser time-of-flight method, allowing accurate distance readings independent of target reflectivity.

This module acts as a tiny self-contained Lidar system, capable of measuring distances up to 2 metres with millimetre resolution. The onboard breakout board includes voltage regulation and level shifting, allowing easy integration with 3.3V and 5V microcontrollers.

The VL53L0X is widely used in robotics, obstacle detection, drones, smart devices and DIY electronics projects.

Key Features:

• Laser Time-of-Flight distance measurement
• Up to 2 metre measuring range
• 1 mm resolution output
• I²C digital interface
• Built-in voltage regulator and logic level shifting
• Compatible with 3.3V and 5V systems
• Compact breakout module design
• Low power consumption

Common Applications:

• Robotics obstacle detection
• Drone altitude sensing
• Smart home automation projects
• Gesture recognition systems
• Object detection and proximity sensing
• Arduino and ESP32 robotics projects
• Raspberry Pi automation systems
• Distance measurement devices

Microcontroller Compatibility:

This module works with most popular development boards including:

• Arduino Uno / Nano / Mega
• ESP32
• ESP8266
• Raspberry Pi
• STM32 development boards
• Micro:bit (via I²C)

Extensive open-source libraries are available for easy integration.

Technical Specifications:

Sensor IC: VL53L0X
Technology: Laser Time-of-Flight (ToF)
Range: Up to 2 metres
Resolution: 1 mm
Accuracy: ±3% to ±10% depending on conditions
Interface: I²C (IIC)
Operating Voltage: 2.6V – 5.5V (via VIN)
Logic Level: 3.3V / 5V compatible
Package Type: Breakout module
Communication Speed: Standard I²C
Laser Type: Infrared VCSEL
Package Type: PCB (requires Assembly/Solder)
Product Code: VL53L0X-TOF-DIST-SENSOR-NZ

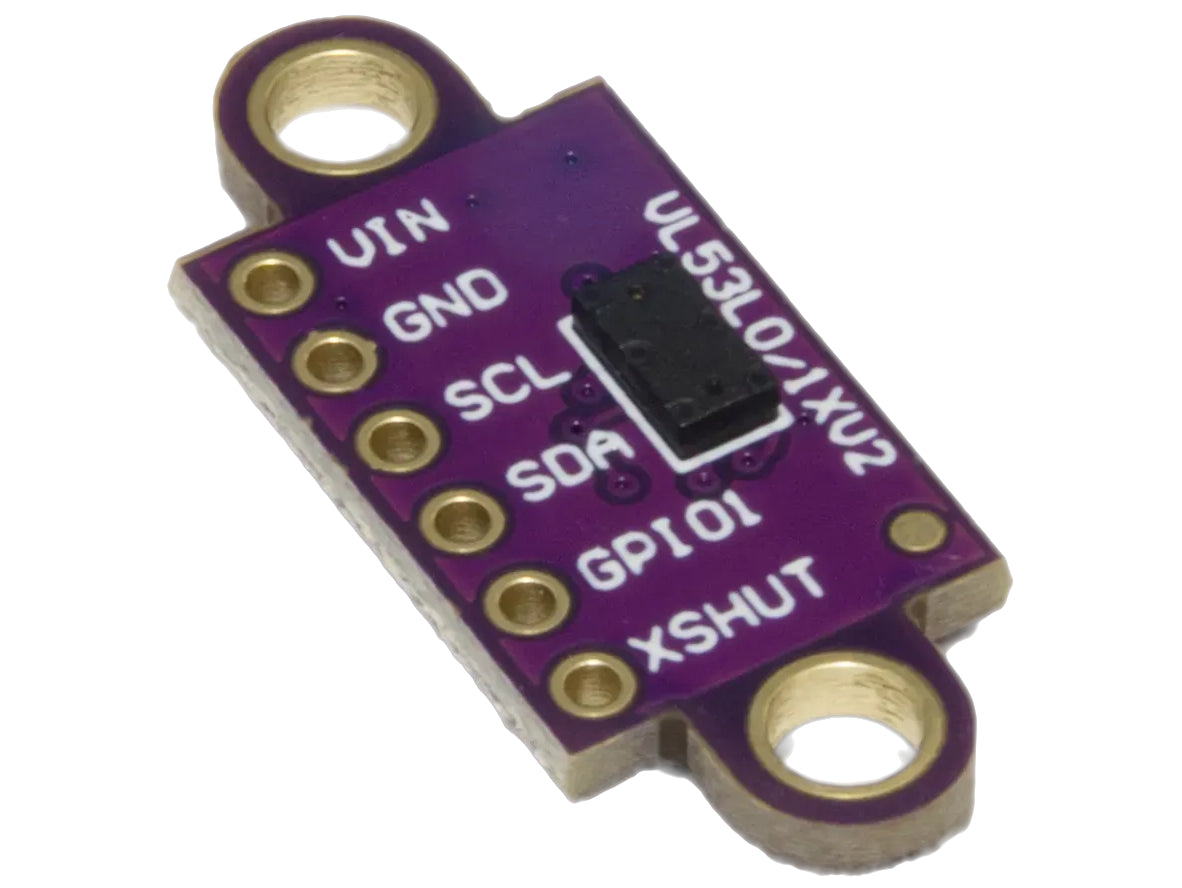

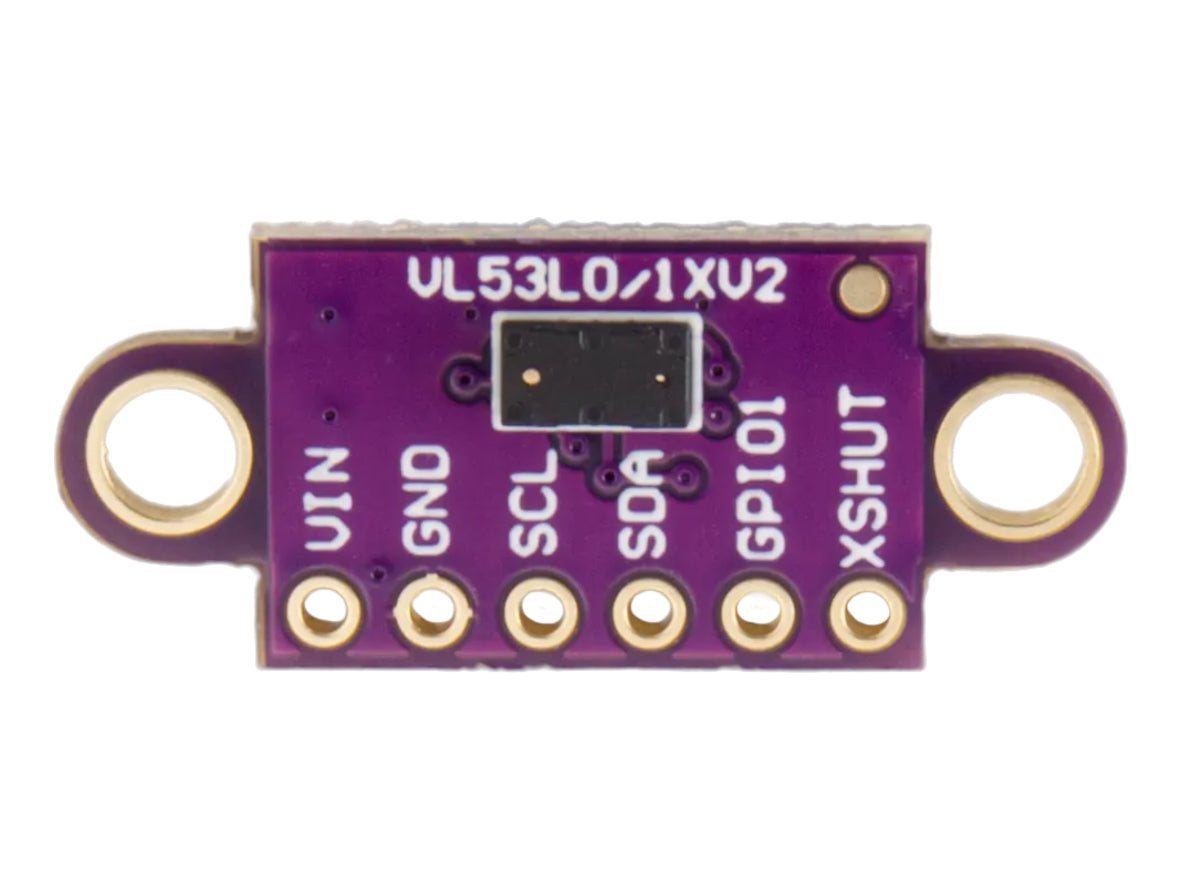

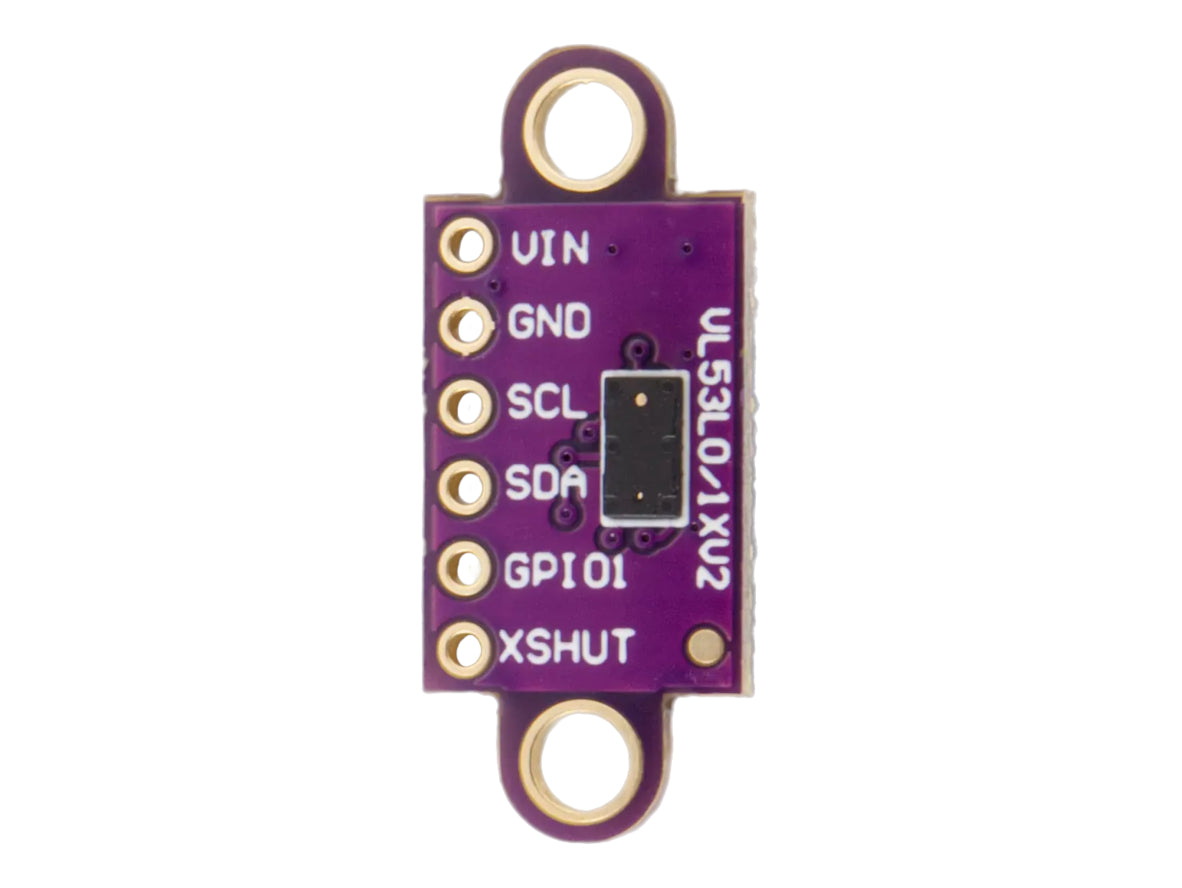

Pinout:

VIN – Power input (2.6V to 5.5V)
GND – Ground
SDA – I²C Data
SCL – I²C Clock
XSHUT – Active-low shutdown control
GPIO1 – Interrupt output

Important Notes:

• Maximum range depends on target reflectivity and lighting conditions.
• Performance may reduce on dark or absorbent surfaces.
• This module measures distance only (not object colour or shape).

Package includes: 1x VL53L0X Time-of-Flight Laser Distance Sensor Module.

*The image is for illustrative purposes only. Due to variations in camera settings, lighting, manufacturing processes, monitors, and supply, colours may differ. Product appearance and specifications are subject to change without notice.
