USB to Serial Cable TTL 4 Pin RS 232 UART Converter Adapter Programming ModulePRODUCT CODE: TX840
USB 4 Pin TTL RS 232 UART Serial Converter Adapter Programming Module Cable.
The PL-2303HX USB to TTL RS232 Serial converter is a low-cost USB to Serial Adapter.
The PL-2303HX provides a convenient solution for connecting an RS-232 TTL serial device to any USB capable host i.e Arduino Pro, Gotek, Raspberry Pi, Microcontroller, WiFi Router serial console port.

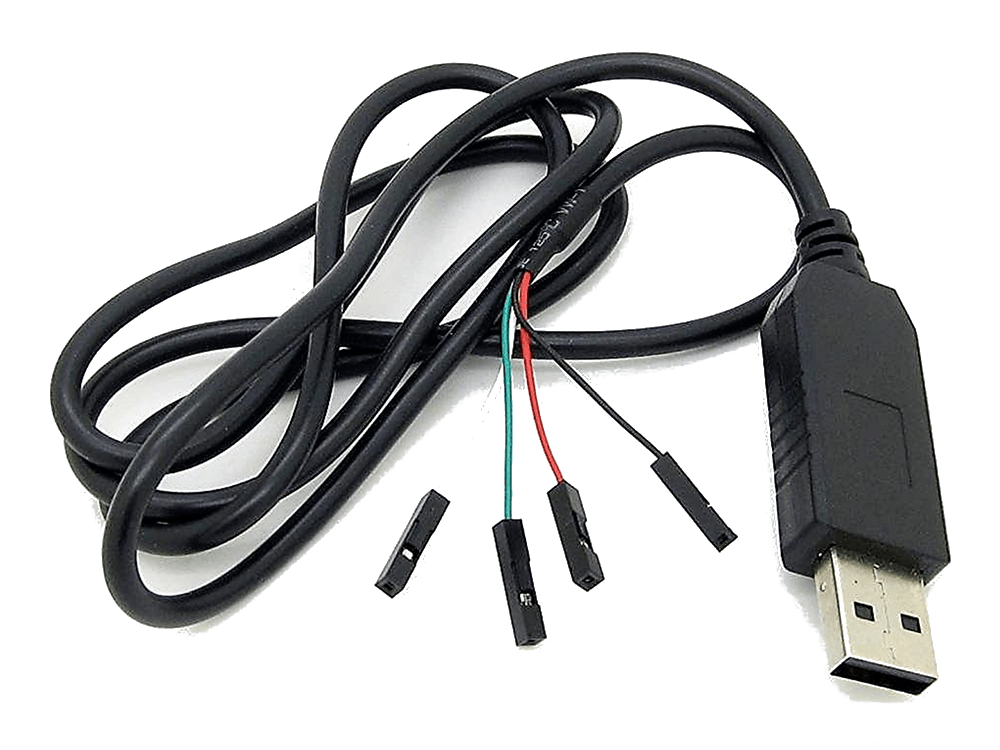

There are four wires: red power, black ground, white RX into USB port, and green TX out of the USB port.
The power pin provides the 5V @ 500mA direct from the USB port and the RX/TX pins are 3.3V level for interfacing with the most common 3.3V logic level chipsets.
Sold as: Each.
5V, 3.3V or 3V operation.
Cable length: Approximately 90cm.
Built-in TTL COM PC-PL2303HX Chip.
Full compliance with the USB Specification v1.1.
Standard Type A USB Male and TTL 4 Pin connector.
On-chip USB 1.1 transceiver and 5V -> 3.3V regulator.
Simple & Easy way to give USB support to your designs.
Compatible with Linux, Mac, WinCE and Windows XP, Vista, Windows 7, Windows 10.
Wire colour pinout guide:
Red - VCC +5 Volt.
Black - GND Ground.
White - RXD Receive Data.
Green - TXD Transmit Data.
Package includes: 1x USB 4 Pin TX/RX COM Port RS232 TTL UART PL2303HX Converter Module Cable.
Combine & Save. See our range of cables, parts and accessories.
Download Driver: 💾
Warranty & Returns:
2 Year return to base refund or replace guarantee.
