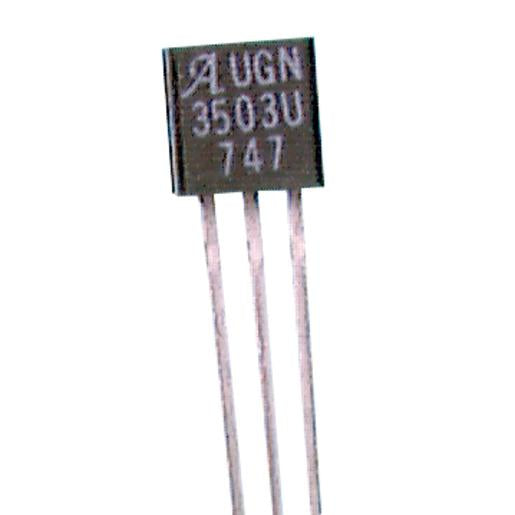

UGN3503UA Hall Effect Sensor

Product code: TXWS2077

$12.95 NZD

Sale Sold out

GST included. $7.79 flat-rate shipping to all New Zealand addresses. Unlimited items.

Questions about this product? Ask us Need help choosing or checking compatibility?

UGN3503UA Hall Effect Sensor.

Arduino Compatible.
Raspberry Pi Compatible.

A miniature sensor to accurately track extremely small changes in magnetic flux density - changes generally too small to operate hall effect switches.

Applications include notch sensor, current monitor, gear tooth sensor, etc.

Specifications:

Width: 4.17mm.
Height: 3.1mm.
Depth: 1.57mm.
Supply Current: 9mA.
Output Voltage: 2.5V.
Output Resistance: 50Ω.
Operating Voltage: 4.5V.

Package inludes: 1x UGN3503UA Hall Effect Sensor.
