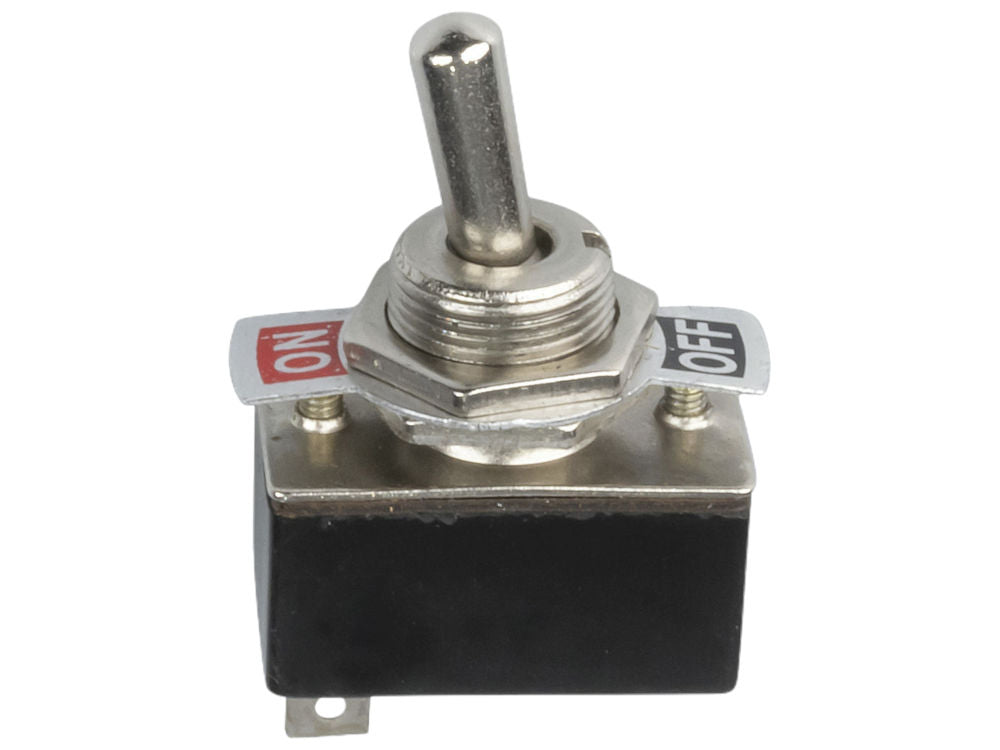

SPST Standard Toggle Switch

SPST Standard Toggle Switch.

SPST panel mount toggle switch.

Rated 2A 250V.

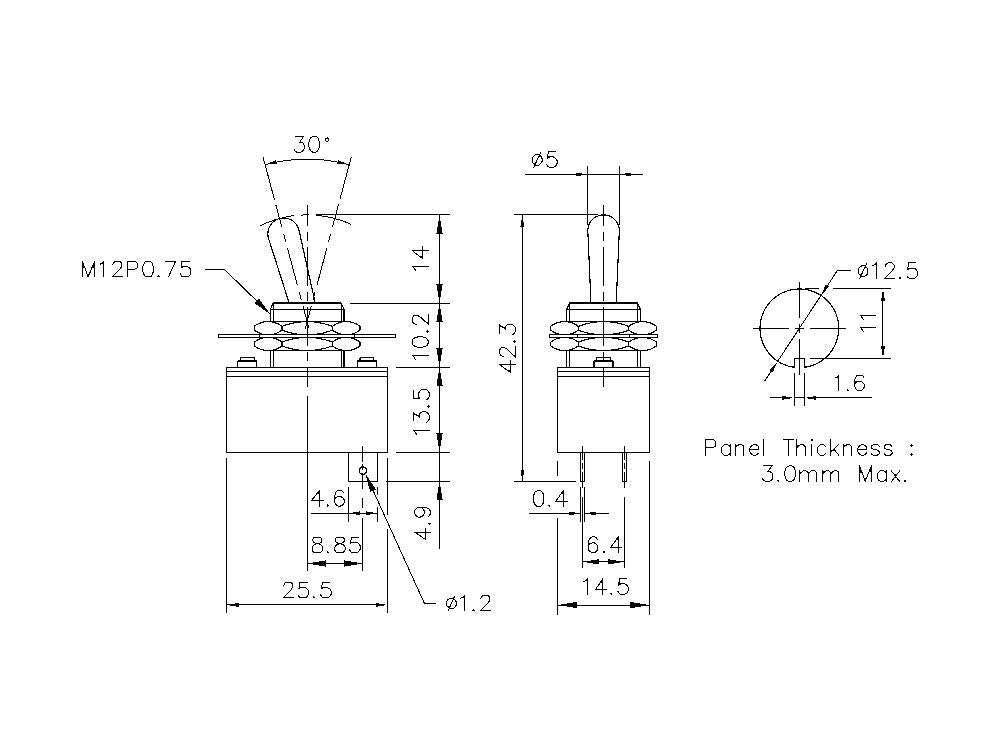

12mm Mounting hole.
Body size 26 x 14mm, clearance 20.5mm.

A 2A 250V SPST Standard Toggle Switch is a specific type of single-pole, single-throw (SPST) electrical switch that can handle a maximum current of 2 amperes and a maximum voltage of 250 volts.

This means that the switch can be used to control low-power electronic devices that require a current of up to 2 amperes and a voltage of up to 250 volts. The switch has a single input or output contact and can be in one of two states: open or closed, depending on the position of the toggle.

The SPST standard toggle switch is a commonly used type of switch in electronic circuits, and the 2A 250V rating is a common specification for low-power applications. When selecting a switch for a particular application, it is important to choose one that is rated appropriately for the expected current and voltage requirements to ensure safe and reliable operation.

Technical Specifications:

DC Voltage: 250V
DC Current rating: 2A

Sold as: Each
Packaging: Bulk
Switch Type: Toggle
Actuator Width: 6mm
Poles / Contacts: 1 pole
Cycle Life: 40000 cycles
Actuator Length: 10mm
Contact Resistance: 10Ω
Throws / Positions: 1pos
Dielectric Strength: 1000V
Insulation Resistance: 1000Ω
Connection: Solder Terminals
Mounting Method: Behind Panel
Product category: Electrical Switches

Download Datasheet: 💾

Package includes: 1x SPST Standard Toggle Switch.
