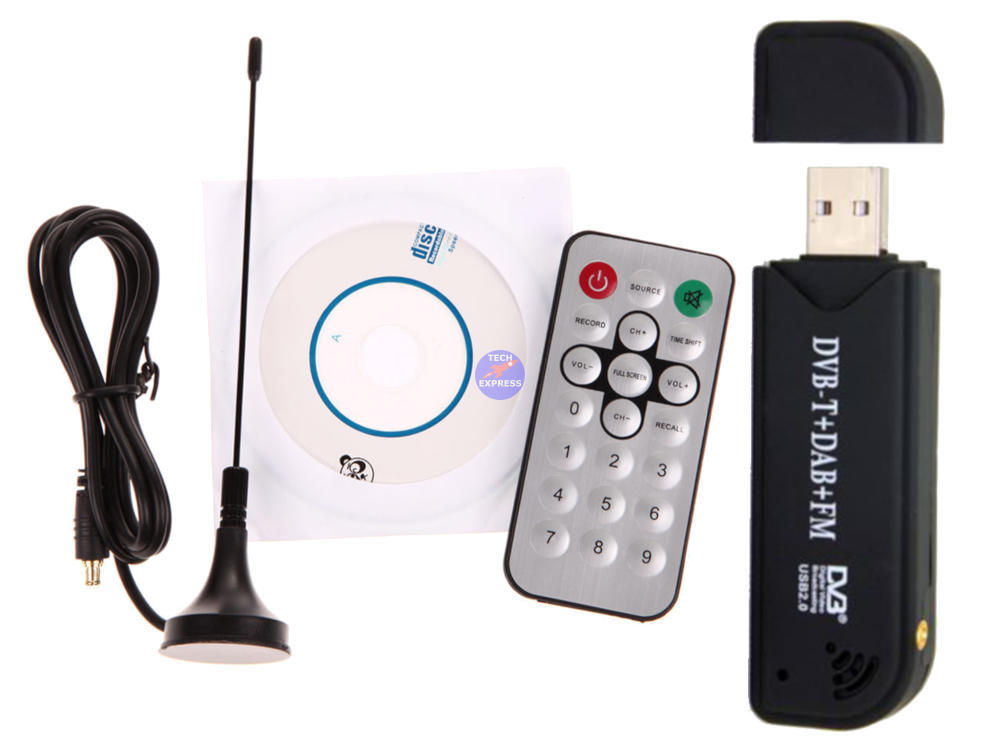

USB RTL-SDR Receiver – RTL2832U + FC0012 22–948.6 MHz

Turn your computer into a software defined radio receiver and explore FM radio, airband, marine VHF and other signals with compatible SDR software and a suitable antenna.

This USB receiver combines the Realtek RTL2832U demodulator with a Fitipower FC0012 tuner, making it suitable for radio listening, signal exploration and supported digital decoding applications.

The FC0012 offers a typical SDR tuning range of approximately 22–948.6 MHz. The RTL2832U outputs 8-bit I/Q samples, with a maximum theoretical sample rate of 3.2 MS/s. Lower sample rates may be required to avoid dropped samples, depending on the computer and USB connection. Actual frequency coverage depends on the software and receiver implementation.

Applications

• FM broadcast radio.
• Aircraft voice communications within the airband.
• Marine VHF radio and AIS decoding.
• Amateur radio reception within the supported frequency range.
• Compatible wireless sensor and remote-control signals.
• Learning about radio signals and SDR software.

Reception and decoding depend on the antenna, available signals and software used.

Technical specifications

• Chipset: Realtek RTL2832U + Fitipower FC0012.
• Typical SDR tuning range: approximately 22–948.6 MHz.
• ADC resolution: 8-bit.
• Maximum theoretical sample rate: 3.2 MS/s.
• USB interface: USB 2.0.
• Power: USB powered.
• Operation: Receive only.
• Packaging: Bulk.

Software and setup

Compatible SDR software and driver installation are required. This receiver is not plug-and-play. SDR software can be downloaded, so a CD-ROM drive is not required for SDR use. Follow the setup instructions for your chosen application and operating system. Setup guide

Please note: This FC0012 model does not cover 1090 MHz and is therefore unsuitable for standard 1090 MHz ADS-B aircraft tracking.
