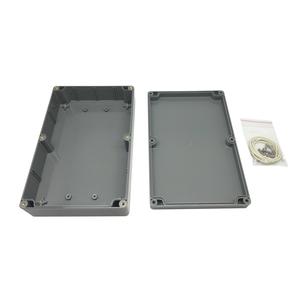

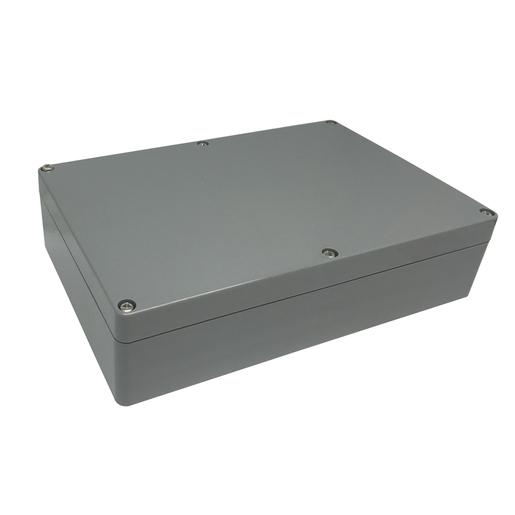

Sealed ABS Enclosure - 222 x 146 x 55mm

Sealed ABS Enclosure - 222 x 146 x 55mm.

Gainta enclosure, made with ABS, moulded in dark grey.

Features:

Operating temperature: minus 20oC to 100oC.
Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts.
The lid and base incorporate a tongue and groove sealing systemwith a EPDM gasket.
Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust.

Specifications:

IP Rating : IP65
Dust/Particle Ingress Protection: 6 - Dust tight, no ingress of dust.
Liquid/Moisture Ingress Protection: 5 - Water jets.
Width: 222mm.
Height: 55mm.
Depth: 146mm.
Packaged Volume: 2.24l.
Packaged Weight: 0.38kg.
Packaged Length: 23.3cm.
Packaged Width: 16cm.
Packaged Height: 6cm.
Material: ABS Plastic (Acrylonitrile Butadiene Styrene).
PCB Internal Guide Slots: Yes.
Internal Mounting Posts: Yes.
Gasket sealing system: Yes.
Lid Screws: 6pc.
Ventilation Holes: No.

5 Year Warranty.

Package includes: 1x Sealed 222 x 146 x 55mm ABS Enclosure.
