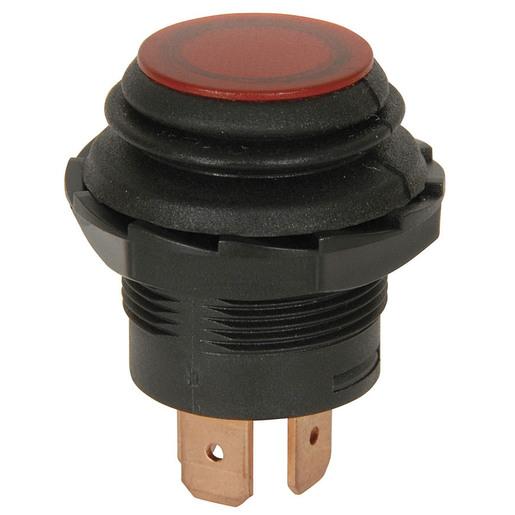

Red Momentary IP65 Pushbutton Switch

PRODUCT CODE: TXWS3711
  • $11.89

Ask a Question

Red Momentary IP65 Pushbutton Switch.

• SPST
• IP65 rated
• Illuminated Red.
• Momentary action.

Electromechanical Switch.
Switch Function: Single Action Momentary.
Mechanism Material: Plastic.
Switch Connection: Spade Terminals.
Switch Colour Coded: Red.
Pole Throw Type: SPST.
Switch Type: Pushbutton.
Poles / Contacts: 1 pole.
Throws / Positions: 1 pos.
Contact Resistance: 50Ω.
Insulation Resistance: 100MΩ.
Dielectric Strength: 1500V.
Product Mounting; Attachment / Securing Method Collar / Nut.
Max Mount Panel Thickness: 6mm.
Round Mount Hole Diameter: 22mm.
Mounting Method: Panel.
DC Voltage 14V
DC current rating 10A
Ingress Protection Rating: IP Rating 65.
Dust/Particle Ingress Protection 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection 5 - Water jets

In-built Illumination:
Nominal Voltage: 12V.
Illumination Colour: Red.
Type 5mm Standard LED.
Illumination Position: Top.
Connection: Spade Terminals.

Product dimensions:

Diameter 31mm.
Height 38mm.
