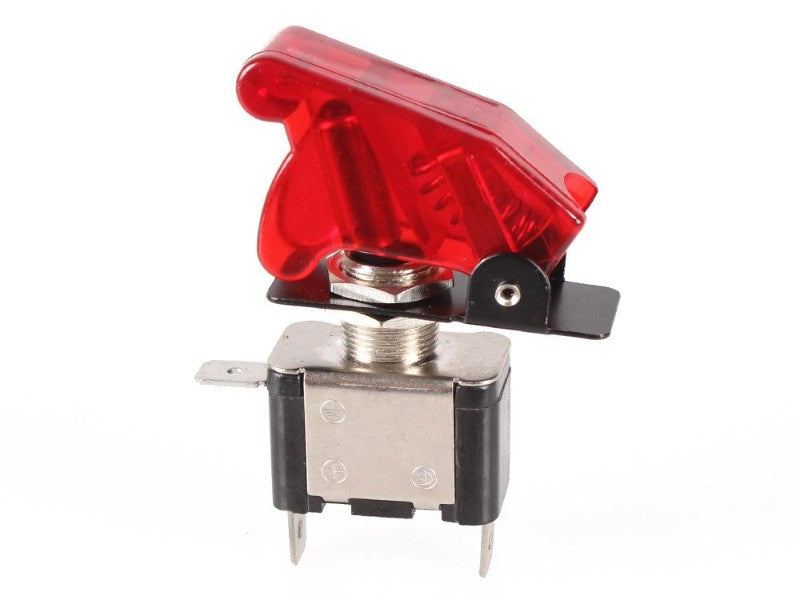

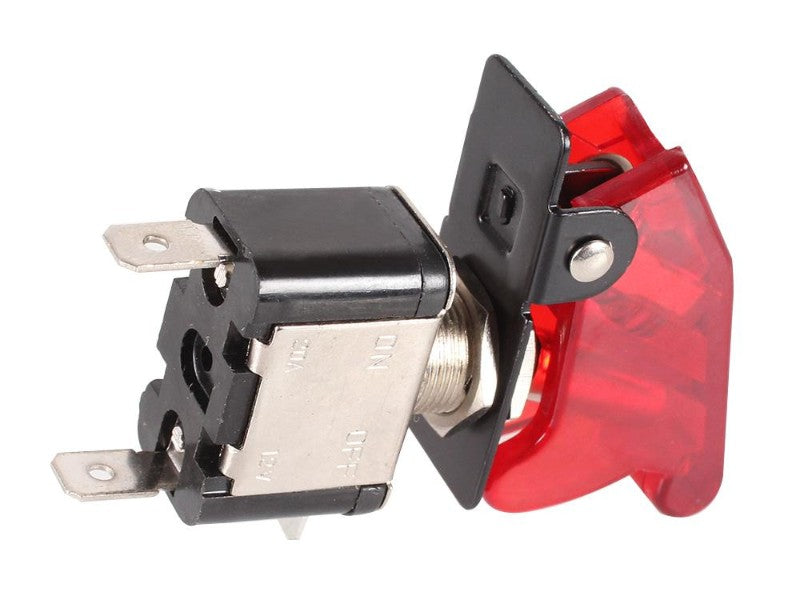

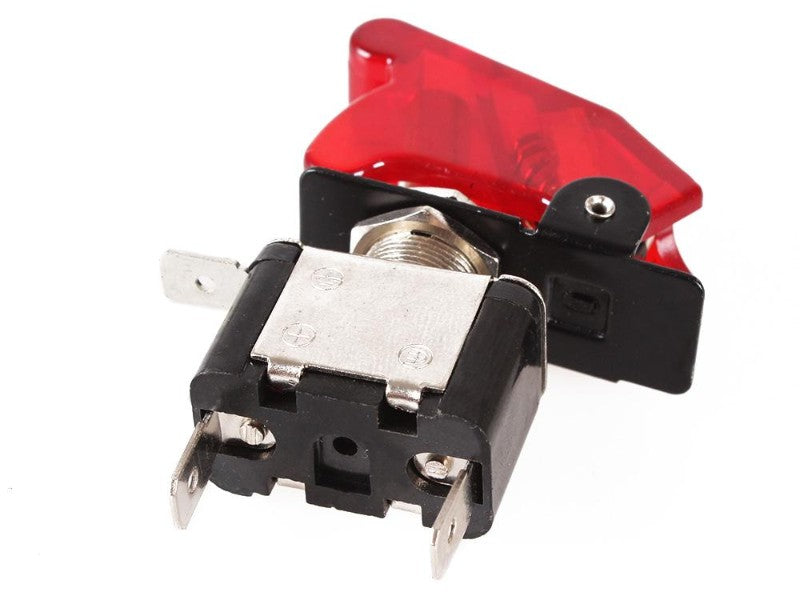

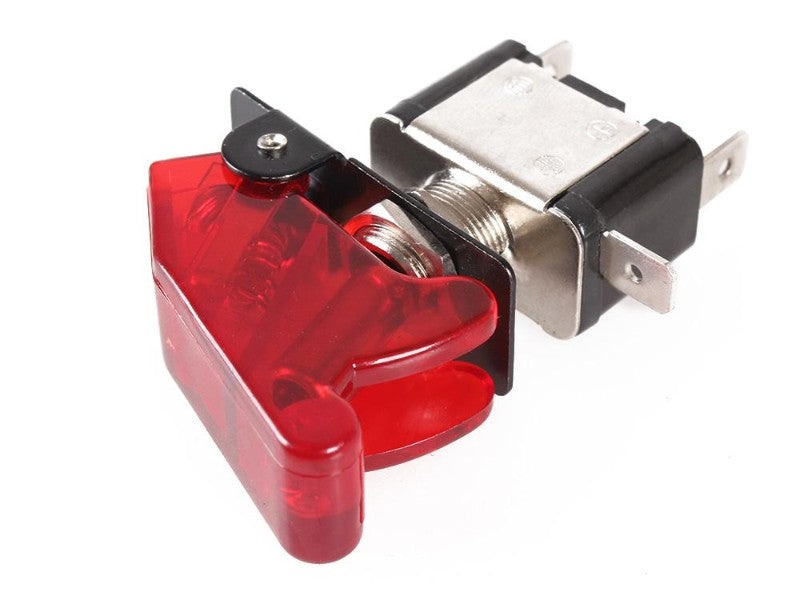

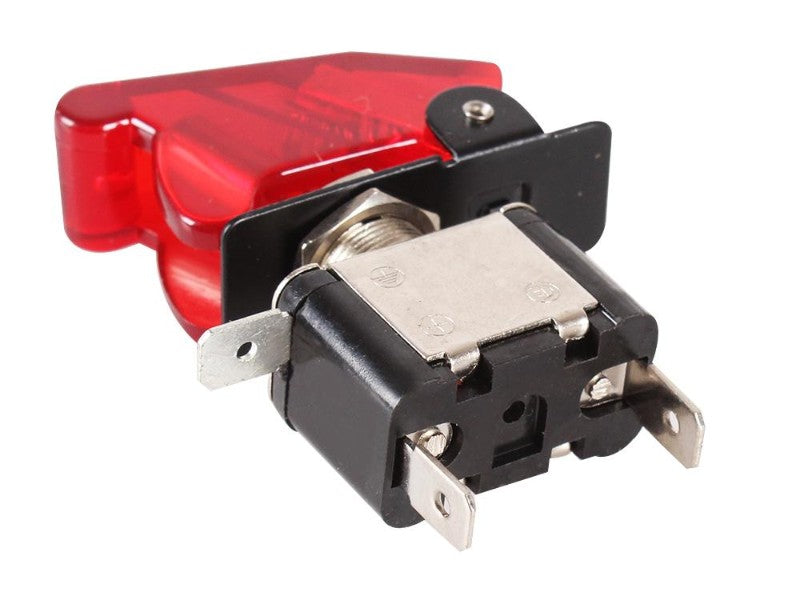

12V 20A Red LED Toggle Switch with Missile Cover - Automotive SPST On/Off

The 12V 20A red LED automotive toggle switch with missile cover is a panel-mount on/off switch for 12V DC accessory circuits. It is used to control auxiliary lights, accessories, caravan, boat, motorhome, 4WD, and DIY electronics loads within its rated current, with a red illuminated indicator and safety cover to help reduce accidental switching.

Technical Specifications

Compatibility

• Compatibility: 12V DC automotive, marine, caravan, motorhome, 4WD, trailer, and DIY accessory circuits within rating
• Not Compatible With: 230V/240V AC mains, household wall wiring, socket outlets, loads above 20A, and direct high-current starter motor loads

Physical Specifications

• Product Type: Red LED illuminated automotive toggle switch with missile-style safety cover
• Mounting / Fitment: Panel mount
• Mounting Hole: 12mm
• Shaft Length: 12.5mm
• Safety Cover: Red missile-style flip cover
• Colour: Red cover with red LED illumination

Connectivity / Electrical

• Switching Function: On/off toggle
• Switch Style: SPST
• Terminal Layout: Common 3-pin illuminated switch layout; confirm terminal markings before wiring
• Power Requirements: 12V DC circuit
• Electrical Rating: 12V DC, 20A
• Electrical Life: Up to 100,000 cycles
• LED Life: Up to 50,000 hours

Package Information

• Included Items: 1x red LED toggle switch with red safety cover
• Sold As: Single unit
• Packaging: Bulk
• Product Code: AUTO-SW-12V20A-REDLED-MISSILE-NZ
• Product Category: Automotive Electrical Switches
• Applications: Car accessories, 4WD lights, caravan wiring, boat wiring, motorhome panels, DIY electronics, relay control, project panels
