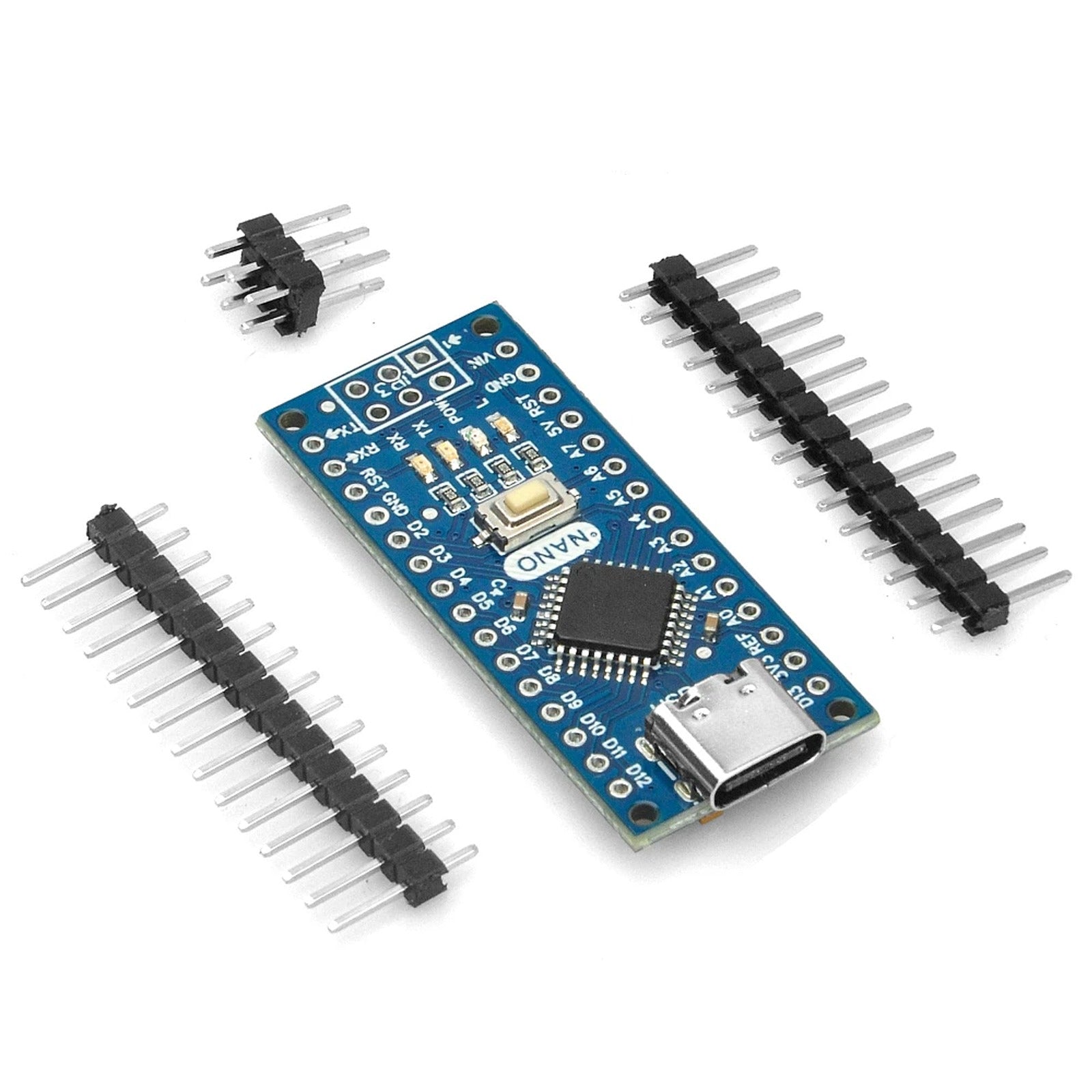

Nano V3.0 ATmega328P USB-C Development Board – Unsoldered Headers

Build compact Arduino-compatible projects with this Nano V3.0 development board featuring an ATmega328P microcontroller, USB-C programming connection and loose unsoldered header strips.

Features

• ATmega328P microcontroller running at 16MHz
• USB-C connection for programming and 5V power
• CH340G USB-to-serial interface
• 14 digital I/O pins, including 6 PWM outputs
• 8 analog inputs
• 32KB flash memory, 2KB SRAM and 1KB EEPROM
• 5V logic
• Loose, unsoldered header strips for breadboard, low-profile or direct-wiring projects

Compatibility and setup

This generic third-party board is compatible with the Arduino IDE but is not manufactured by or affiliated with Arduino. Select the appropriate Nano/ATmega328P board and processor settings. The CH340G interface is detected automatically by many computers; a CH340 driver may be required on some systems.

Specifications

• Microcontroller: ATmega328P
• Clock speed: 16MHz
• Logic voltage: 5V
• USB connector: USB-C
• Digital I/O: 14, including 6 PWM outputs
• Analog inputs: 8
• Flash memory: 32KB
• SRAM: 2KB
• EEPROM: 1KB
• Headers: supplied loose and unsoldered
• Product code: MCU-NANO-V3-328P-USBC-UH-NZ
• Condition: New
• Sold as: Each

Package includes: 1 x Nano V3.0-compatible ATmega328P USB-C development board and loose header strips.

Not included: USB-C cable, breadboard, jumper wires, soldering equipment or other accessories.

Important: Correct wiring, voltage selection, soldering and anti-static handling are the user's responsibility.
