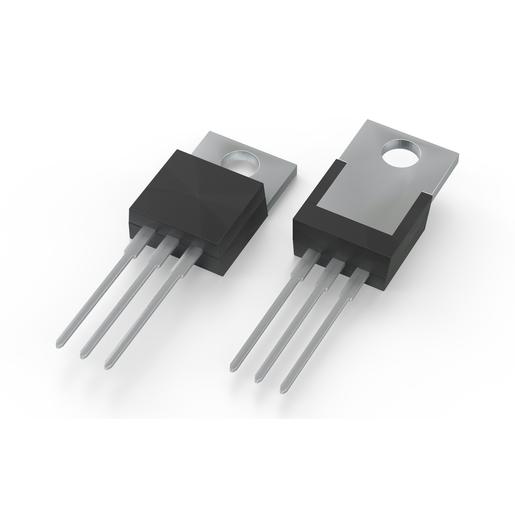

MC78T12 12V 3A Voltage Regulator

MC78T12 12V 3A Voltage Regulator.

+12V 3A fixed voltage regulator. TO-220 package.

The MC78T12 is a voltage regulator integrated circuit that is designed to provide a stable output voltage of 12 volts with a maximum current rating of 3 amperes. It is part of the 78xx series of voltage regulators, which are commonly used in electronic circuits to provide a fixed and regulated voltage.

The MC78T12 voltage regulator is a linear regulator, which means that it works by continuously adjusting the resistance of a series pass transistor to maintain a constant output voltage. It is capable of accepting input voltages ranging from 14 volts to 35 volts, and it provides a dropout voltage of approximately 2 volts, meaning that the input voltage must be at least 2 volts higher than the output voltage in order for the regulator to operate properly.

The MC78T12 voltage regulator also includes a number of built-in protection features, such as thermal shutdown, overvoltage protection, and short-circuit protection, which help to ensure safe and reliable operation in a variety of applications.

The MC78T12 is commonly used in power supply circuits, battery charging circuits, and other applications where a stable and regulated 12-volt output voltage is required.

Specifications:

Regulator package: TO-220.
Regulator polarity: Positive.
Regulator maximum current: 3A.
Regulator output voltage: 11.5V, 12.5V.
Regulator input voltage: 12V, 35V.
Regulator input current: 3A.
Regulator type: Linear Monolithic.
active mount type: Through Hole.
active connector type: Solder Legs.
active number of legs: 3.
diameter of leg: 0.8mm.
leg distance: 2.54mm.
active marking code type: Number code.
unique marking code: MC78T12.
active case colour: Black.
max temperature: 125°C.

Package includes: 1x MC78T12 12V 3A Voltage Regulator.
