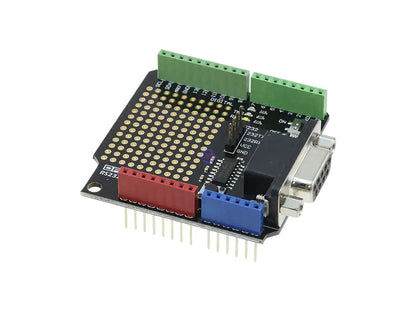

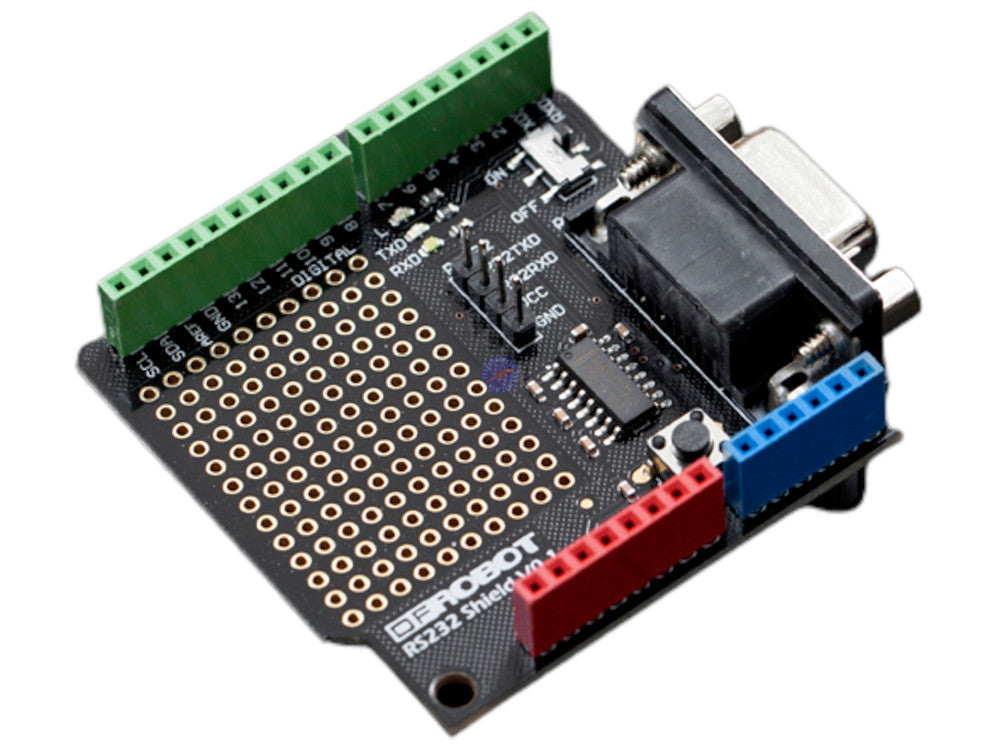

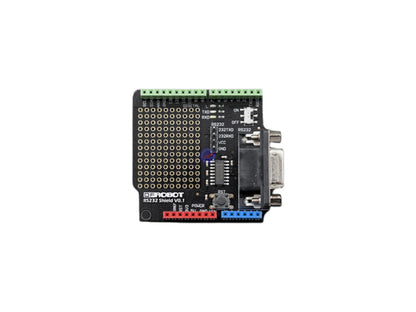

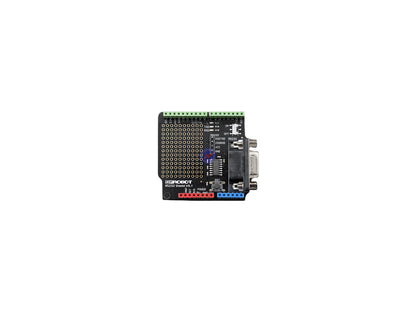

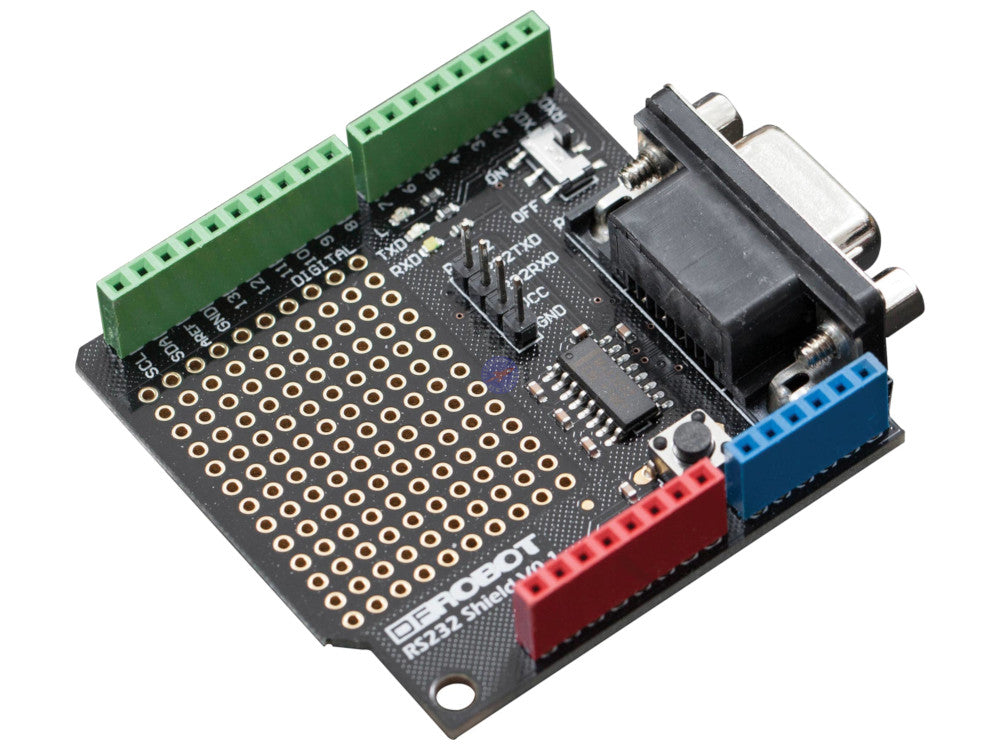

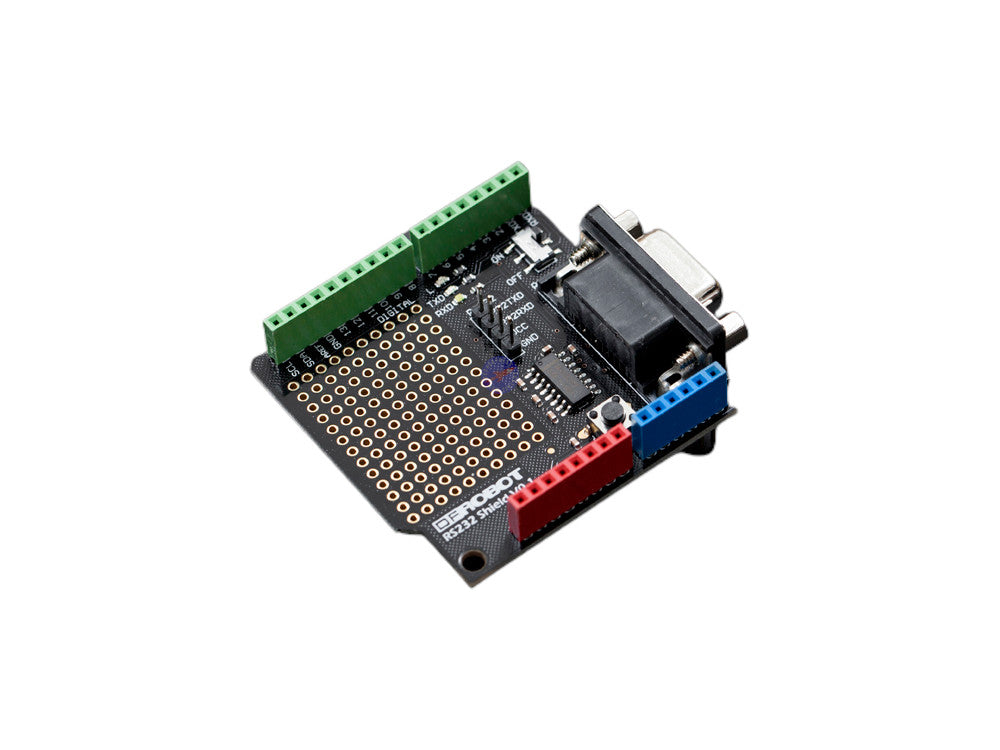

MAX3232 RS232 Shield for Arduino.
*Important, please note: This is currently an Indent item. Delivery typically takes 7~8 working days. Learn more at www.techexpress.co.nz/indent
This RS232 Shield For Arduino is designed for the Arduino controller,and it can easily convert UART to RS232 interface.

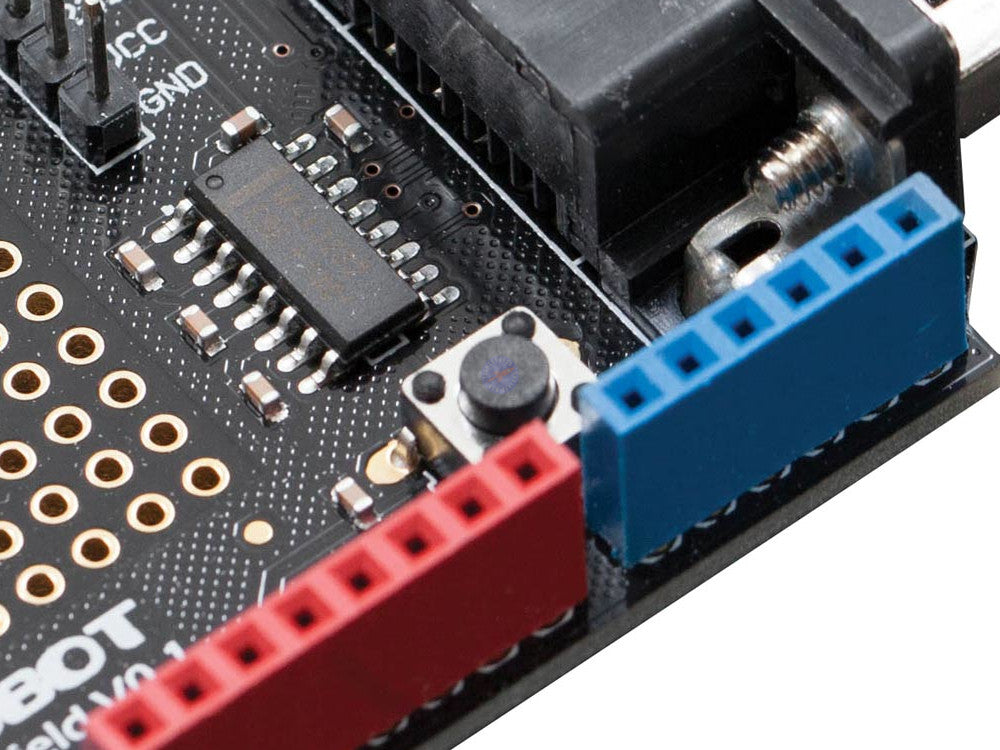

The MAX3232 RS232 Shield is a device that provides an interface between an Arduino development board and a serial device (such as a computer) using the RS232 serial protocol. It contains a MAX3232 integrated circuit, which is a transceiver that converts the TTL/CMOS levels used by the Arduino to the voltage levels required for RS232 communication, and vice versa. By using this shield, an Arduino can communicate with a serial device using the RS232 protocol, making it useful for a variety of applications, such as communicating with a computer or other microcontroller, or connecting to sensors or other devices that use RS232 communication.

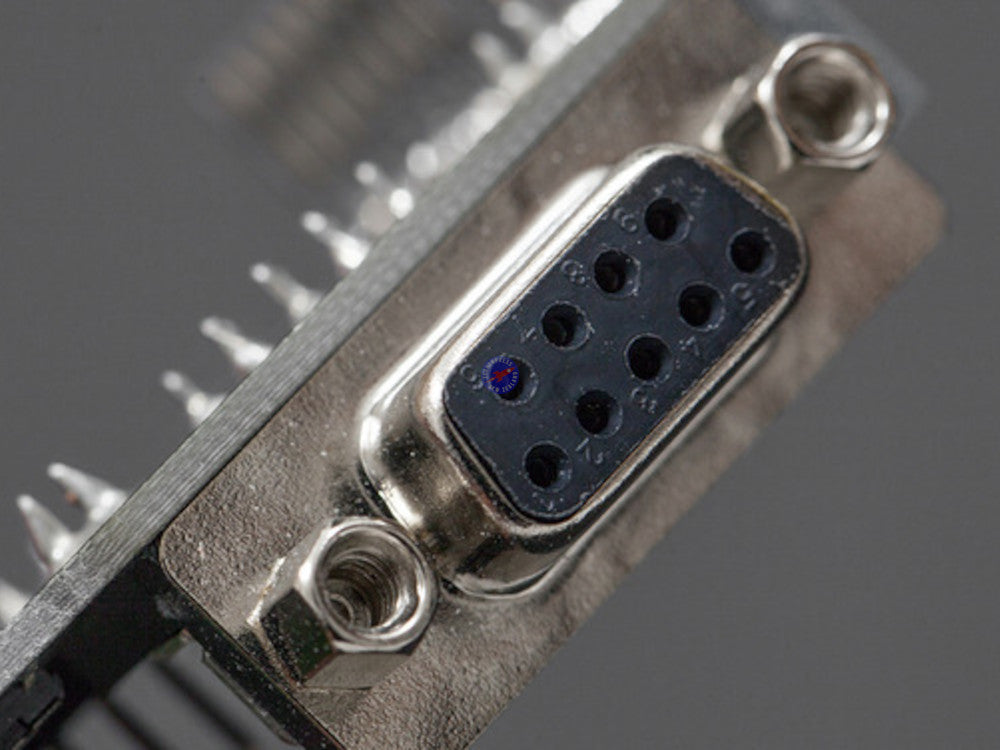

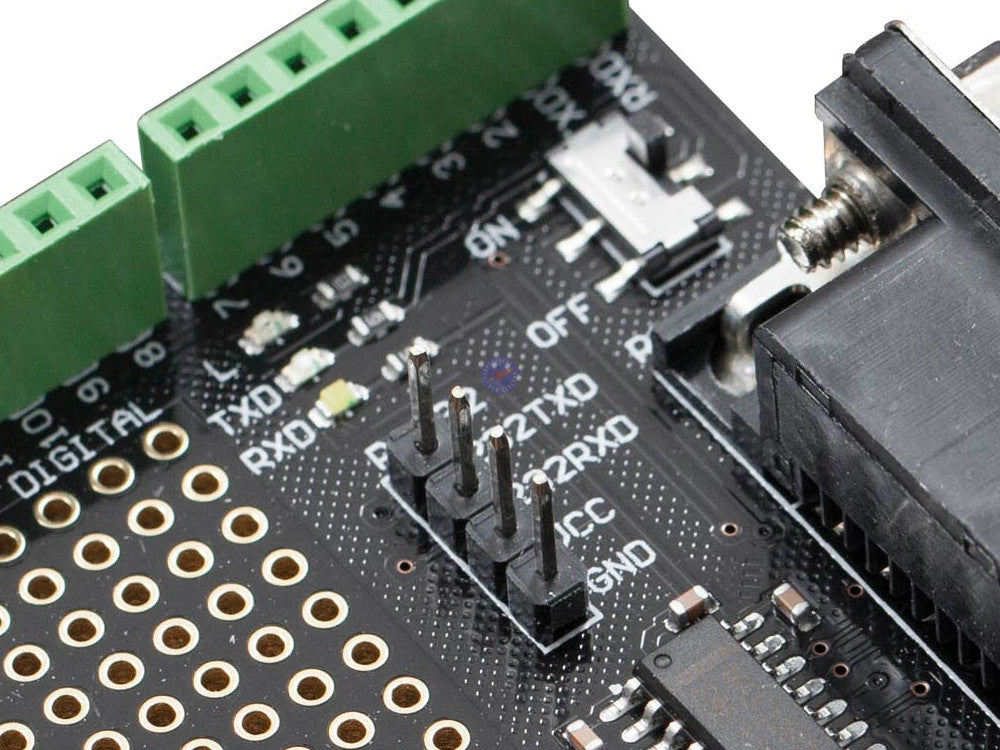

The RS232 shield integrates DB9 connectors (female) that provide connection to various devices with RS232 interface. Also the RS232 shield headers will facilitate your connections and commissioning. It provides the welding areas to make full use of extra space on it, which is highly convenient for prototyping. It provides a run / program mode switch. When switched OFF, you'll be able to programme the Arduino controller; When switched ON, you can use the shield normally. Gold immersion PCB. Long pins on the back that are compatible with most Arduino controllers such as arduino Uno, arduino Mega, Leonardo.
Compability:
• Arduino UNO.
• Arduino UNO R3.
• Arduino Mega 1280/2560.
Voltage: +5V.
Reset switch.
Sold as: Each.
Weldable area.
Condition: New.
Packaging: Bulk.
Transceiver indicating LED.
6 analog IO port and power.
DB9 connectors (female), RS232 pins.
Module size: 55mmx53mm (2.16"x2.08").
Operation and programming mode switch.
16 digital IO port (including a I2C interface).
Package includes: 1x MAX3232 RS232 Shield for Arduino.
