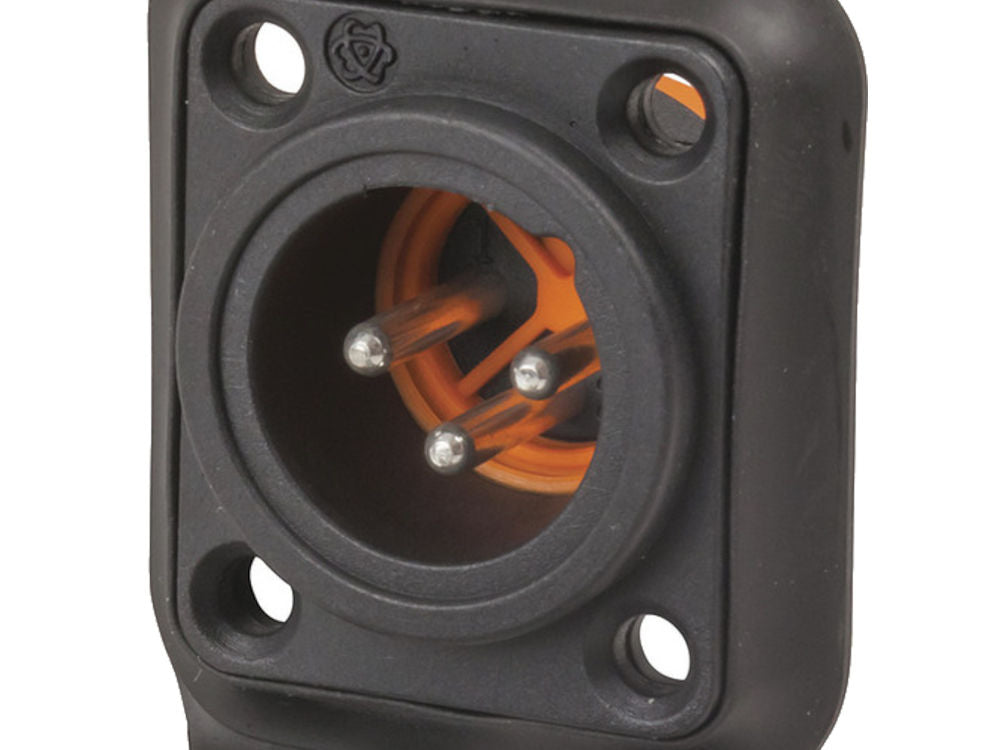

IPX6 Surface Mount XLR Male Connector

IPX6 Surface Mount XLR Male Connector.

Waterproof and Dust Proof XLR Plate Mount Plug.

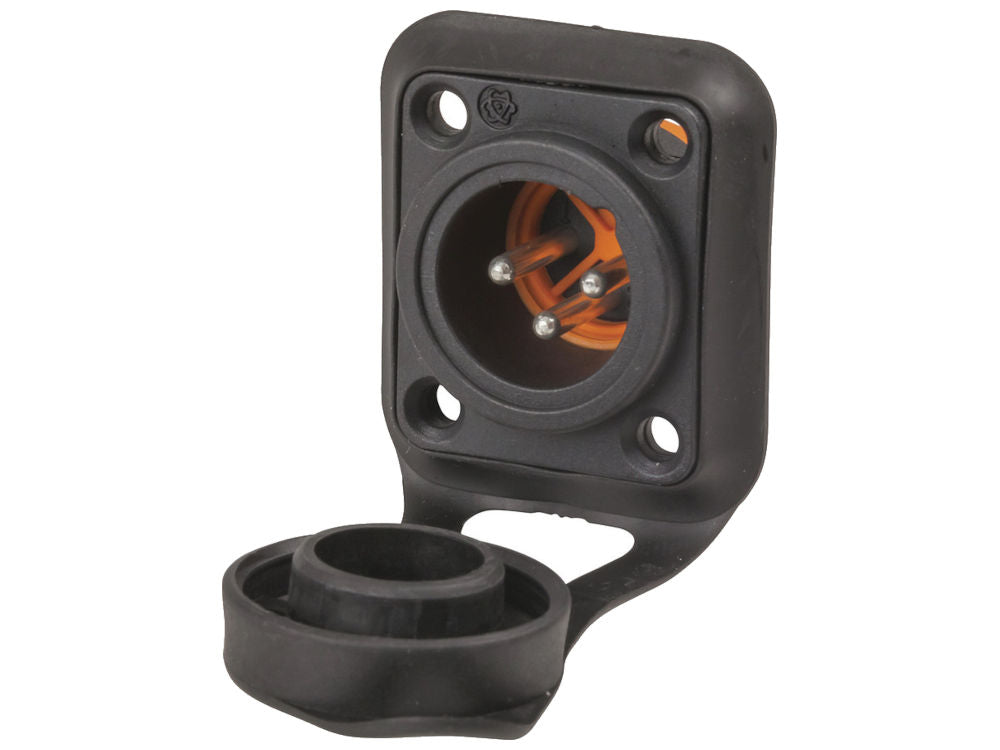

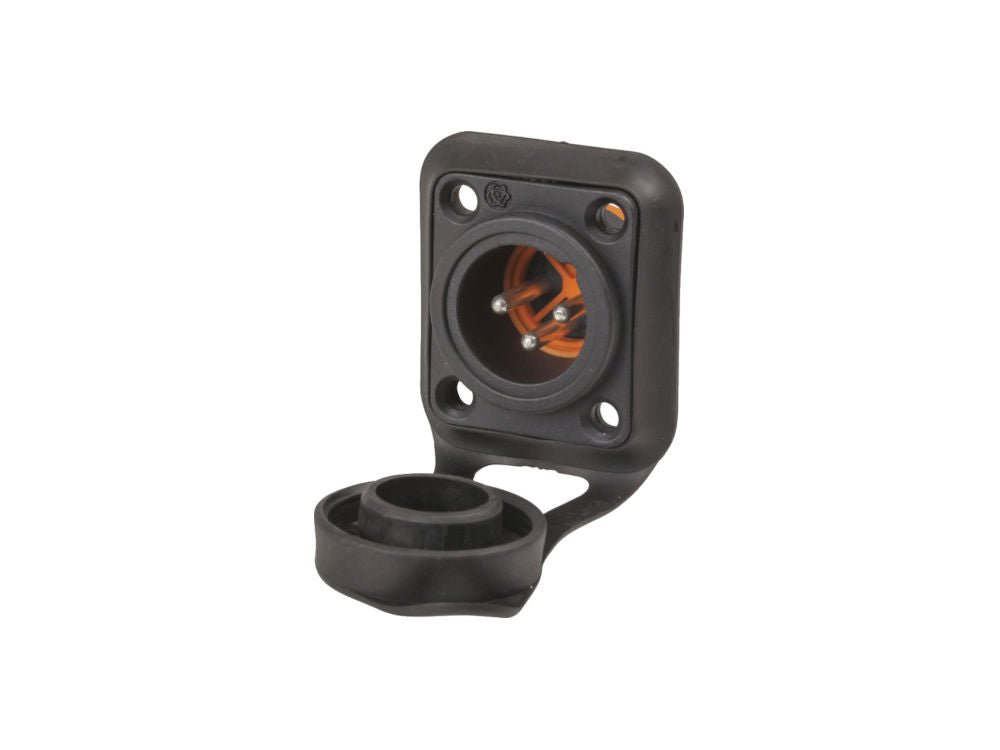

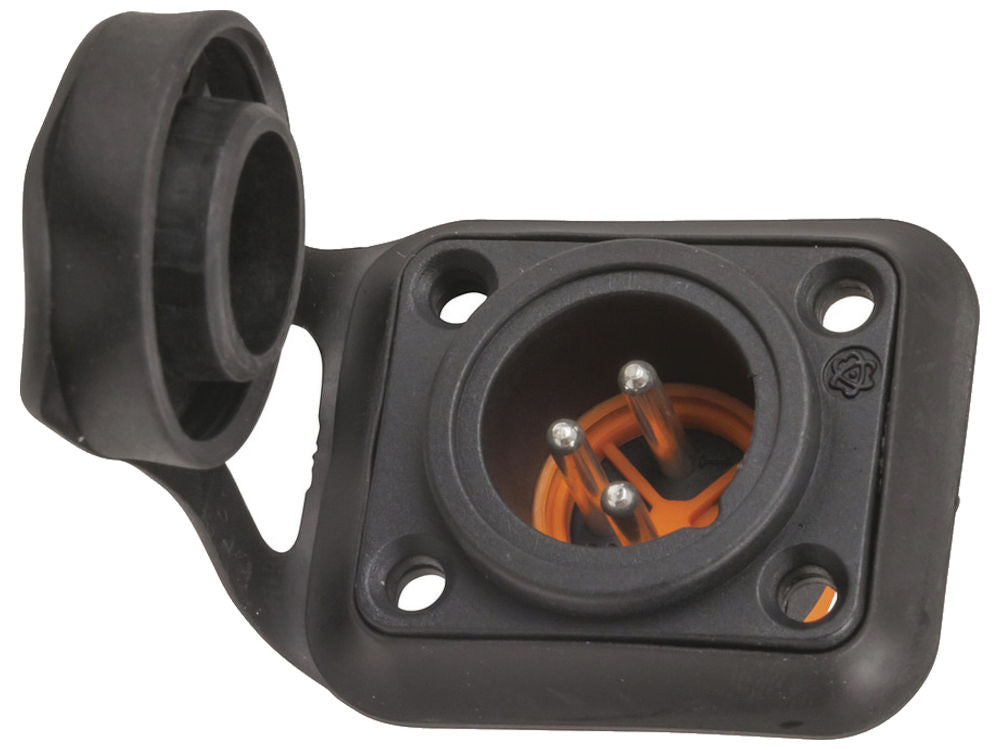

Suitable for wet and harsh environments, it features an IPX6 rated rubber gasket and cover to prevent ingress when not in use. Ideal for PA gear and equipment that may be used outdoors or in humid environments.

Surface mount via screws, hole required for socket recess.

The IPX6 Surface Mount 3 Pin Male XLR connector is a type of audio connector designed for mounting on a surface (such as a panel or device enclosure) and providing a specific level of water ingress protection. XLR connectors are widely used in professional audio, video, and stage lighting equipment for balanced and reliable connections with a locking mechanism for added security.

The "3 Pin Male" designation refers to the plug side of the connector, which has three pins that mate with the corresponding female XLR socket connector.

The "IPX6" rating indicates that the connector offers protection against water ingress, as defined by the International Protection (or Ingress Protection) standard:

The "X" in IPX6 is a placeholder for the dust protection rating, which is not specified in this case.

The digit "6" signifies that the connector is protected against powerful water jets from any direction. Specifically, it can withstand water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction without harmful effects.

The IPX6 Surface Mount 3 Pin Male XLR connector is suitable for applications where the equipment may be exposed to water, such as outdoor events, marine installations, or other environments with potential water exposure. It is important to note that for a complete water-resistant connection, both the male and female sides of the XLR connector should have compatible ingress protection ratings, and appropriate sealing measures should be employed.

Panel Mount: The panel mount XLR connector, also known as a bulkhead or chassis mount connector, is designed to be securely mounted on a cabinet, chassis, enclosure or panel.

Features:

IPX6 Rated.
Rubber Gasket & Cover.

Specifications:

Device: Plug.
Sold as: Each.
Plug Type: XLR.
Packaging: Bulk.
Case Material: Rubber.
Number of Pins: 3 Pin.
Attachment Method: Screw.
Product categories: XLR Connectors.

Width: 35mm.
Depth: 35mm.
Length: 43mm.

Weight: 14g.

Package includes: 1x IPX6 Panel Mount XLR Male Connector.

1 Year Warranty.
