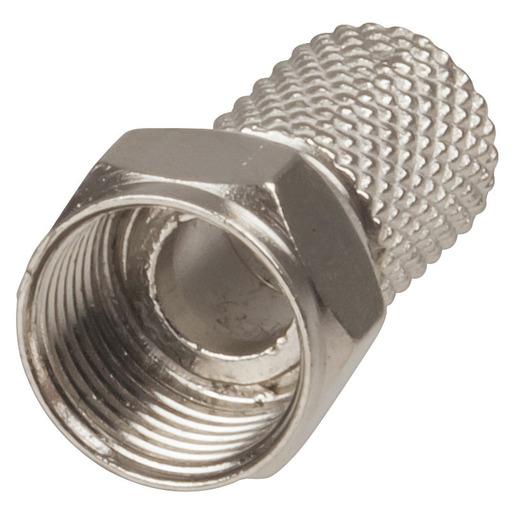

F59 TYPE TWIST-ON Plug Suits RG-6 Cable

Simply strip coax back about 12mm, fold braid/foil back over the plastic outer sheath. Trim about 8mm of foam insulation from centre conductor. Then simply screw the knurled connector on the cable until you see sufficient centre conductor out of the front of the connector. The foam insulation will centrally locate this conductor. If necessary, trim some surplus braid and foil beforehand to stop the screw thread from binding. Only a small amount of braid is needed to achieve sound electrical connection. Trim excess braid from knurled end and for a really neat job pop some heatshrink over the lot.
























Handy
Tip
Coaxial - F Type Plugs, Sockets & Adaptors





Used mainly for RF signals such as those for satellite dishes, cable boxes or TV aerials. The highest quality connections between your cable/satellite wallplate output and the cable/satellite box. Standard emerged from the US cable TV industry. Now the Aust./NZ standard.
