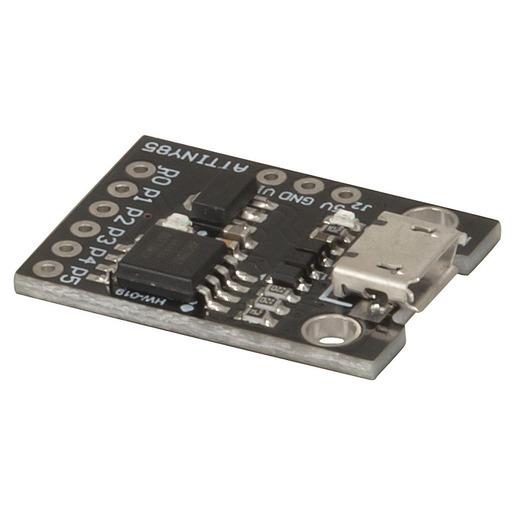

Duinotech ATTINY85 Micro USB Development Board

PRODUCT CODE: TXWS2759
  • $11.00

Ask a Question

Duinotech ATTINY85 Micro USB Development Board.

USB 2.0.

The ATtiny85 Mini Development Board is a compact, low-cost microcontroller board based on the ATtiny85 microcontroller chip, which is a member of the Atmel AVR family of microcontrollers. This board is designed for small-scale projects or prototypes, where space and power consumption are crucial factors.

The ATtiny85 chip itself is an 8-bit microcontroller with 8KB of ISP (In-System Programmable) flash memory, 512 bytes of EEPROM, and 512 bytes of SRAM. It has six general-purpose I/O pins, which can be used for various functions such as digital input/output, analog input (ADC), and PWM output. The ATtiny85 also includes an internal oscillator, eliminating the need for an external crystal oscillator in many applications.

The ATtiny85 Mini Development Board is popular among hobbyists and makers due to its simplicity, low cost, and versatility for a variety of applications, ranging from wearables to home automation projects.

This tiny development board features an ATtiny85 8-bit microcontroller that you can program using the Arduino IDE to make projects that don’t need all the performance of larger development boards such as the Arduino Nano or Uno. It has an onboard micro USB socket for programming and power, and 6 x I/O connections. Power can also be provided directly via 5V, or by using the integrated 5V voltage regulator from a 7-35VDC supply (12V or less recommended).

Features:

• Low power.
• Integrated 5V Regulator.
• 8k Flash Memory (about 6k after bootloader).

Specifications:

Board Inputs: 6.
Board Outputs: 6.
Program memory: 8KB.
USB Voltage Input: 5V, 5V.
USB Item Connection: Micro USB.
Required Supply Voltage: 7V, 35V.
Microcontroller: ATtiny85 8-bit microcontroller.

Height: 5mm.
Width: 24mm.
Depth: 18mm.

Package includes: 1x ATtiny85 Mini Development Board.

*Image is for illustrative purposes only. Due to camera, lighting, monitor and manufacturing variations, colours may vary.
