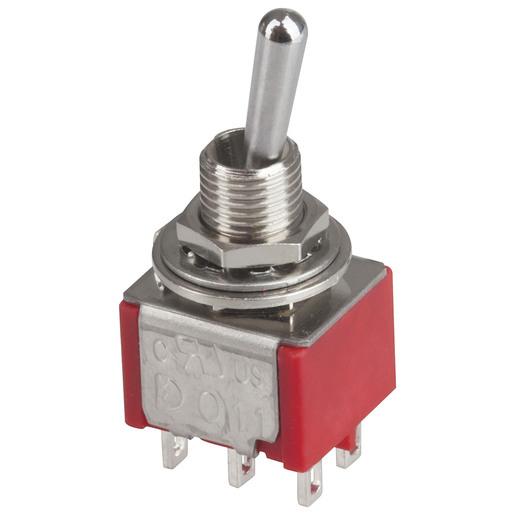

DPDT Miniature Toggle Switch - Solder Tag

DPDT Miniature Toggle Switch - Solder Tag.

Solder tag with threaded bush.
Brackets indicate switch position (on - on).
Operating temperature: -30 degrees ~ +85 degrees Celsius.
Contact rating (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC.
Contact rating (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC.
Switch case material: Diallyl Phthalate (DAP) (UL94V-0).
Toggle Handle: Chrome plated Brass.
Bushing: Nickel-plated Brass.
Housing: Stainless Steel.
Terminals: Switch support components: Brass, electro-tin plated (for solderability).
Contacts: Fixed and moving, Silver-plated over copper alloy (standard); Fixed and moving, gold plated over nickel-plated alloy.

Specifications:

AC current rating: 1A.
AC Voltage rating: 250V.
DC current rating: 3A.
DC Voltage: 28V.
Mounting Method: Behind Panel.
Switch Type: Toggle.
Poles / Contacts: 2 Pole.
Throws / Positions: 1 Position.
Centre Off: Yes.
Switch Connection: Solder Tags.
Cycle Life: 30000 cycles.
Contact Resistance: 20MΩ.
Insulation Resistance: 1000MΩ.
Dielectric Strength: 1000V.
Actuator Length: 12.7mm.
Actuator Width: 11.43mm.
