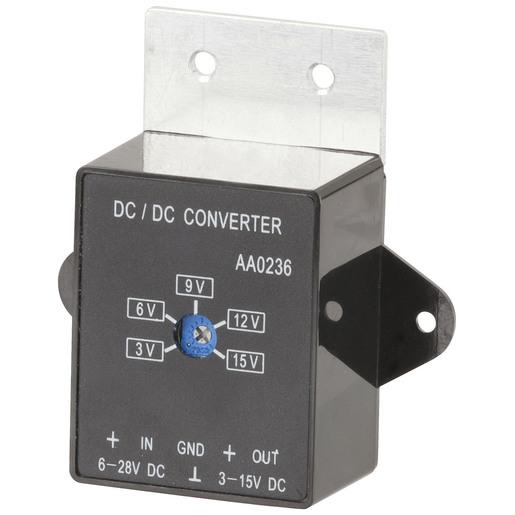

DC to DC Step Down Voltage Converter Module

DC to DC Step Down Voltage Converter Module.

As its name implies, a DC-DC converter converts one DC voltage to another.

Handy DC voltage converter module that can step-up or step-down voltages so you can power your devices where a different power source is present.

This could include powering 12VDC devices from a 6VDC motorbike battery or to run 12VDC devices from a 24VDC battery found in trucks. These units feature protection against short-circuits, overload and over-heating. They will auto-switch off in the event of overheating. Compact size and all models feature mounting holes.

DC to DC Step Down Voltage Converter Module.

Input voltage: 6~28V DC.
Output voltage: 3~15V DC.
Max output current: 1.5A.
Dimensions: 60(L) x 45(W) x 20(D)mm.

Specifications:

DC Plugpack Voltage: 3.0V, 15.0V.
DC Current Draw: 1.5A.
Connection method: Bare Leads.
Output Type: Bare Leads.
Number of outputs: 1.
Type of converter or transformer: DC to DC.

Dimensions:

Width: 45mm.
Depth: 20mm.
Length: 60mm.
