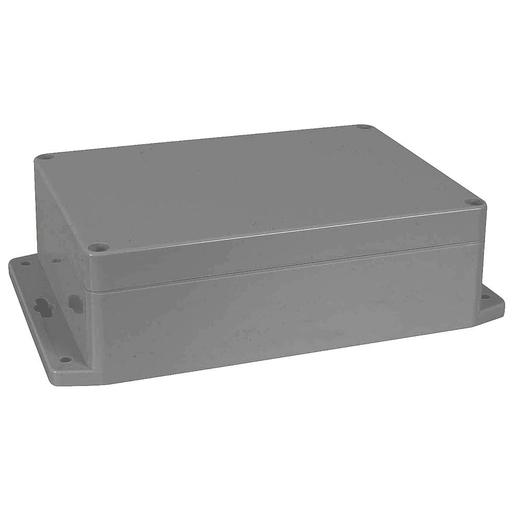

Dark Grey Enclosure with Mounting Flange - 171(W) x 121(D) x 55(H)mm

Dark Grey Enclosure with Mounting Flange - 171(W) x 121(D) x 55(H)mm.

Gainta enclosure, made with ABS, moulded in dark grey.

• Operating temperature: -20 to 80 degrees.
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts.
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket.
• Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust.

Specifications:

Colour: Dark Grey.
IP Rating: IP65.
Dust/Particle Ingress Protection: 6 - Dust tight, no ingress of dust.
Liquid/Moisture Ingress Protection: 5 - Water jets.
Width: 171mm.
Height: 55mm.
Depth: 121mm.
Material : ABS Plastic (Acrylonitrile Butadiene Styrene)
PCB Internal Guide Slots: Yes.
Internal Mounting Posts: Yes.
Gasket sealing system: Yes.
Gasket Material: Neoprene.
Ventilation Holes: No.

Base Dimensions:
Width: 201mm.
Depth: 121mm.

5 Year Warranty.
