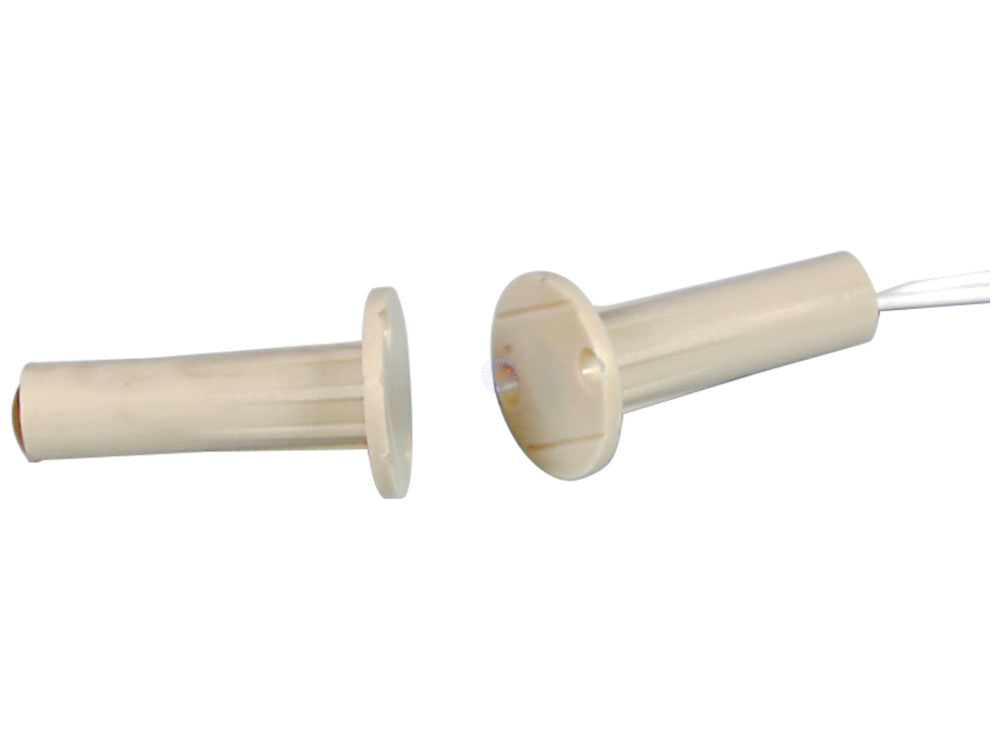

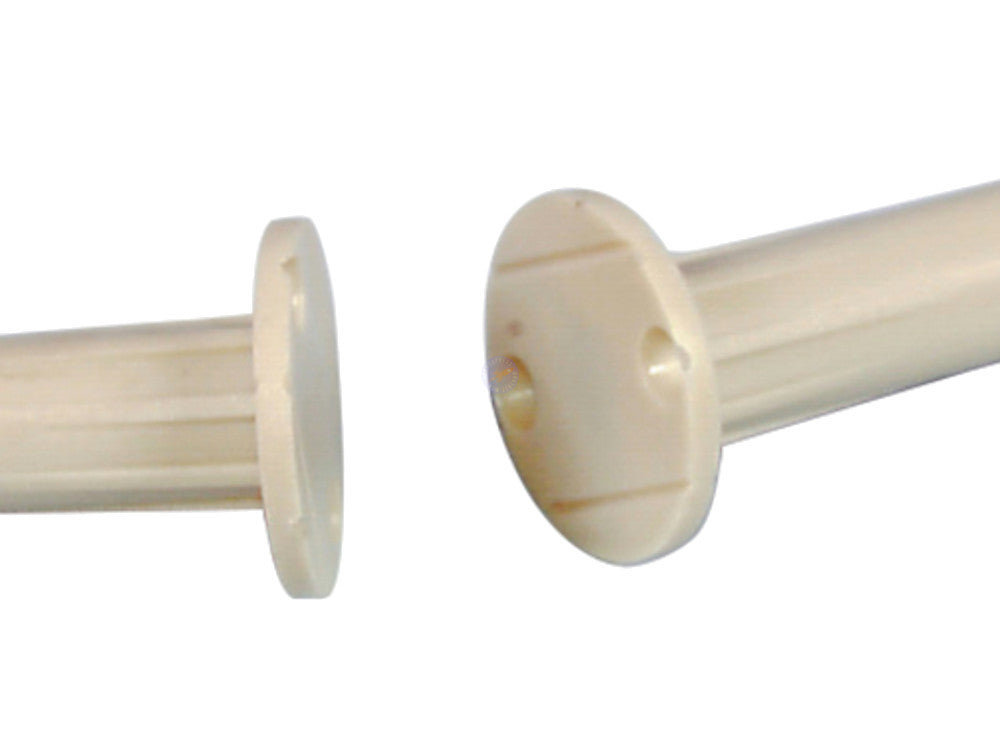

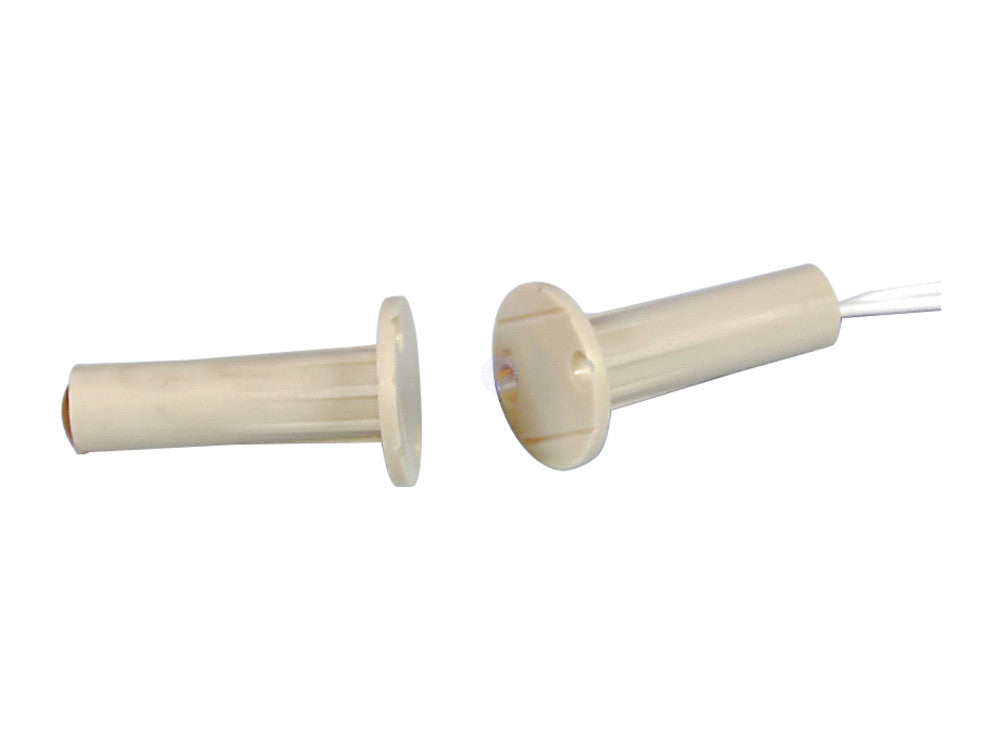

Concealed Timber Door Frame Reed Switch

Concealed Timber Door Frame Reed Switch.

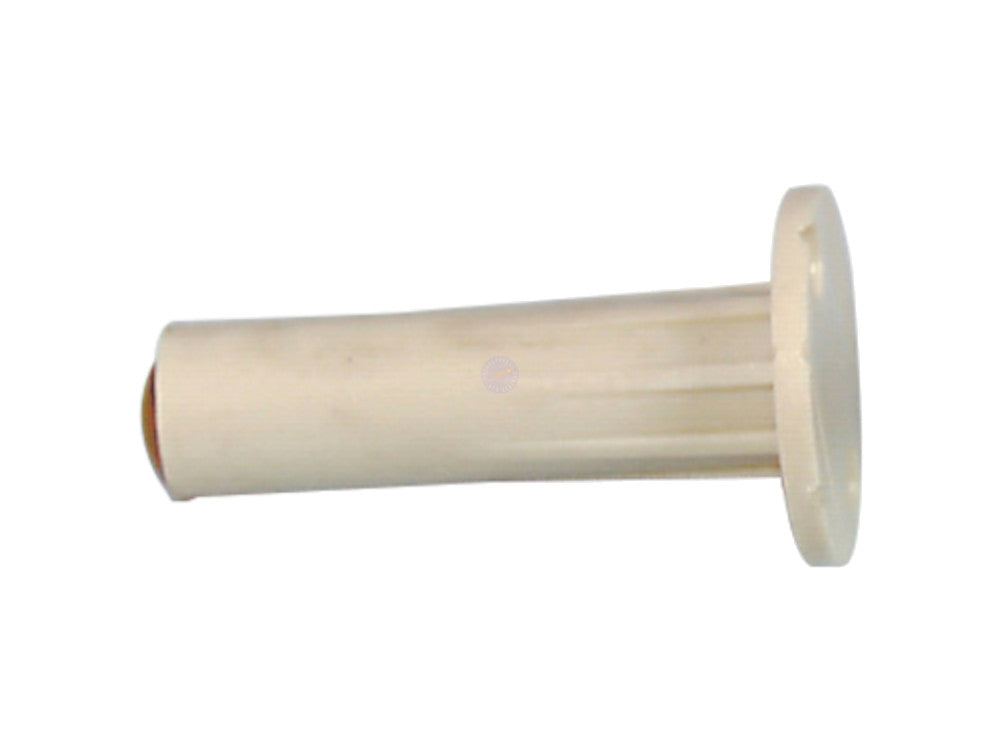

Simply brilliant! Just drill a recess in your door or window and the magnet flush mounts to be "invisible".

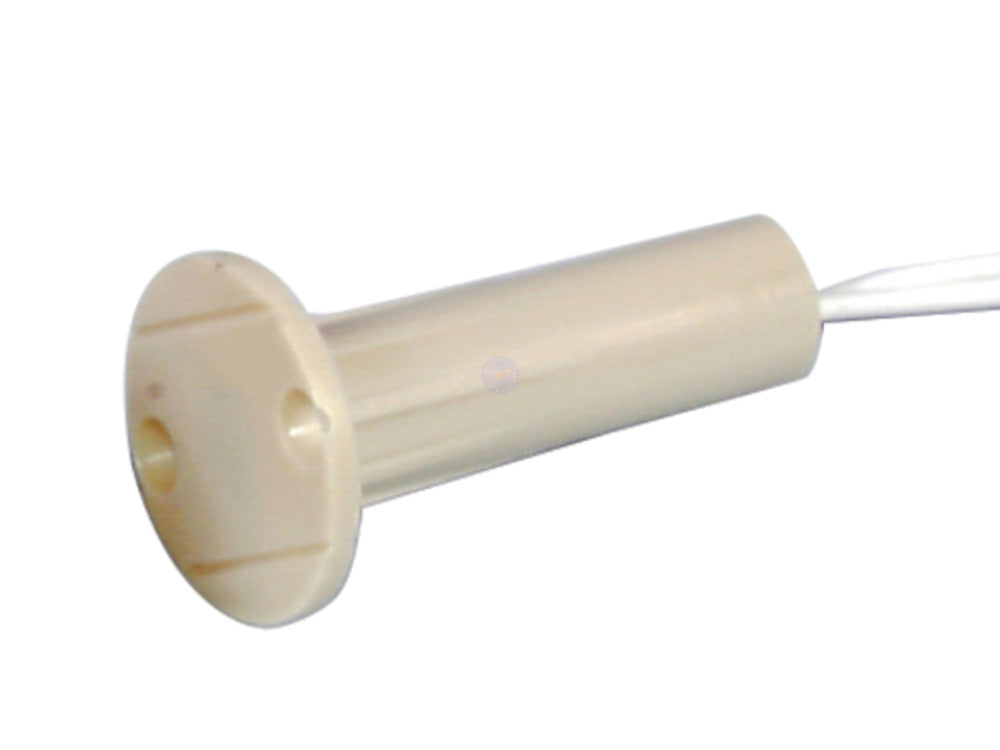

The reed switch segment is similarly mounted into the door frame or window frame & wired into your system. Available in two versions to suit timber or metal frames with both versions normally closed contact.

Contact operation: Contacts are closed cicuit when the magnet is alongside the switch. For alarm installation this is denoted as the "normal" state as the door/window is secure and the alarm is armed.

Specifications:

Approximate Operating Distances (mm) Non Ferrous Surface:

Minimum Close: 10mm.
Maximum Open: 35mm.

Width: 19mm.
Length: 31mm.
Diameter: 9mm.

Switch State: Normally Closed (NC).
Switch Contact Material: Noble Metal.
Switch Contact Rating: 500mA @ 12V DC.
Switch Contact Resistance: 250 milliOhms.
Switch Life Expectancy: >1,000,000 cycles.
Switch Temperature Range: -20° C to +50° C.

Sold as: Each.
Packaging: Bulk.
Stock unit: Each.

1 Year Warranty.
