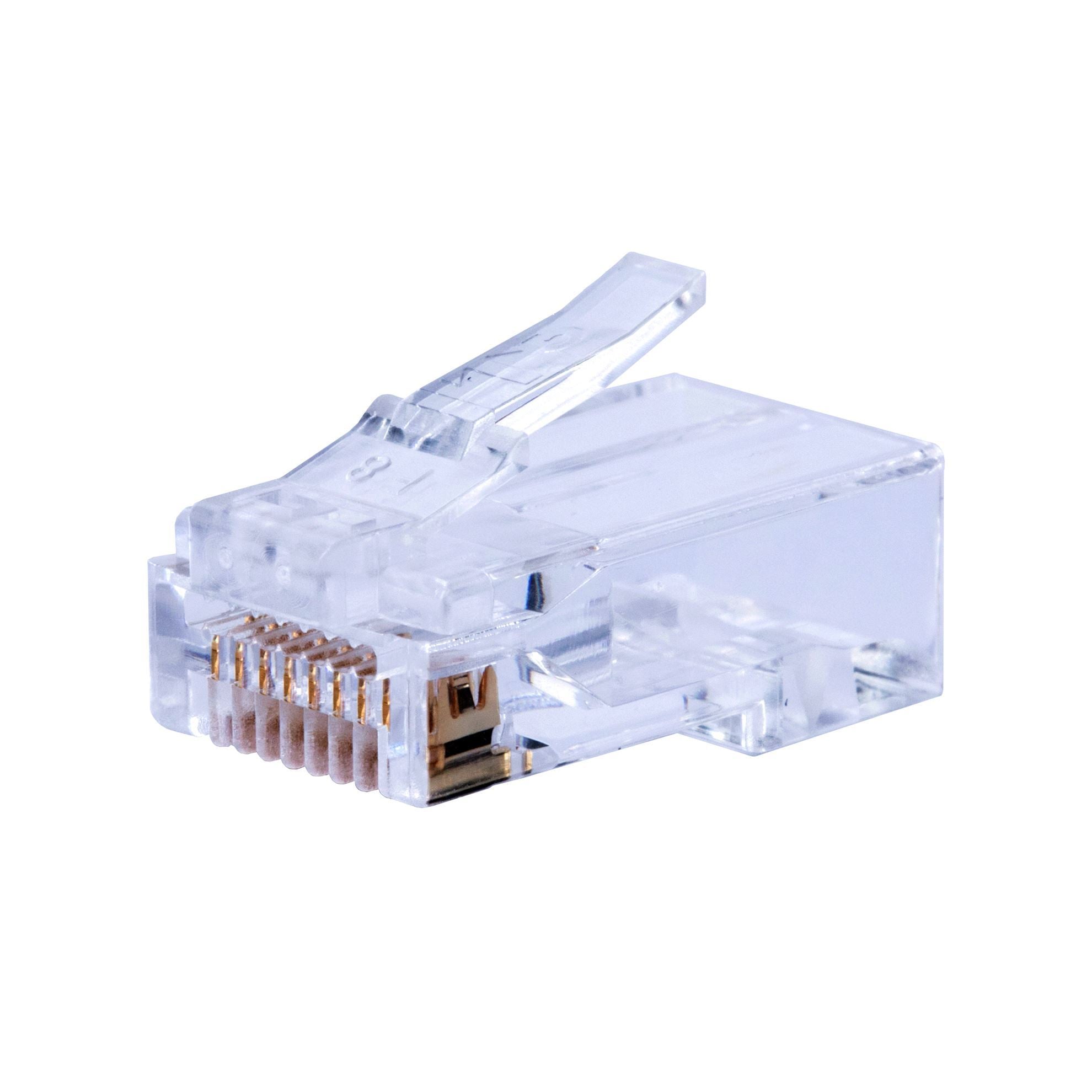

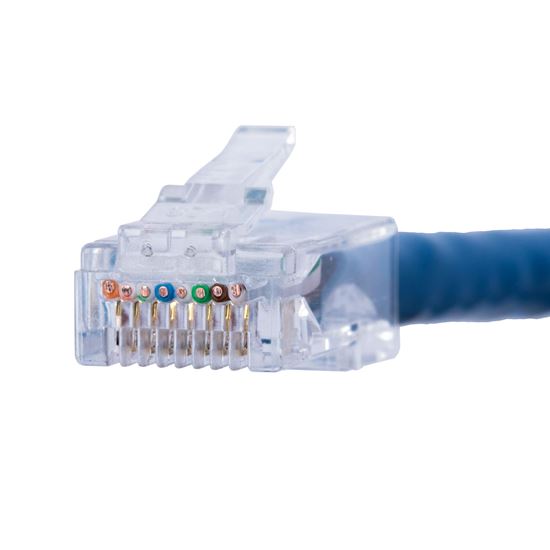

Cat6 UTP Push Pass Through RJ45 8P8C Plug Connector 20 Piece Pack
Move your mouse over image or click to enlarge
Cat6 UTP Push Pass Through RJ45 8P8C Plug Connector 20 Piece Pack Cat6 UTP Push Pass Through RJ45 8P8C Plug Connector 20 Piece Pack Cat6 UTP Push Pass Through RJ45 8P8C Plug Connector 20 Piece Pack Cat6 UTP Push Pass Through RJ45 8P8C Plug Connector 20 Piece Pack

Cat6 UTP Push Pass Through RJ45 8P8C Plug Connector 20 Piece Pack

PRODUCT CODE: NZ-CAT6-PUSH-PLUG-20
  • $25.99

Ask a Question

Cat6 UTP Push Pass Through RJ45 Plug Connector 20 Piece Pack.

For both Solid & Stranded cable.

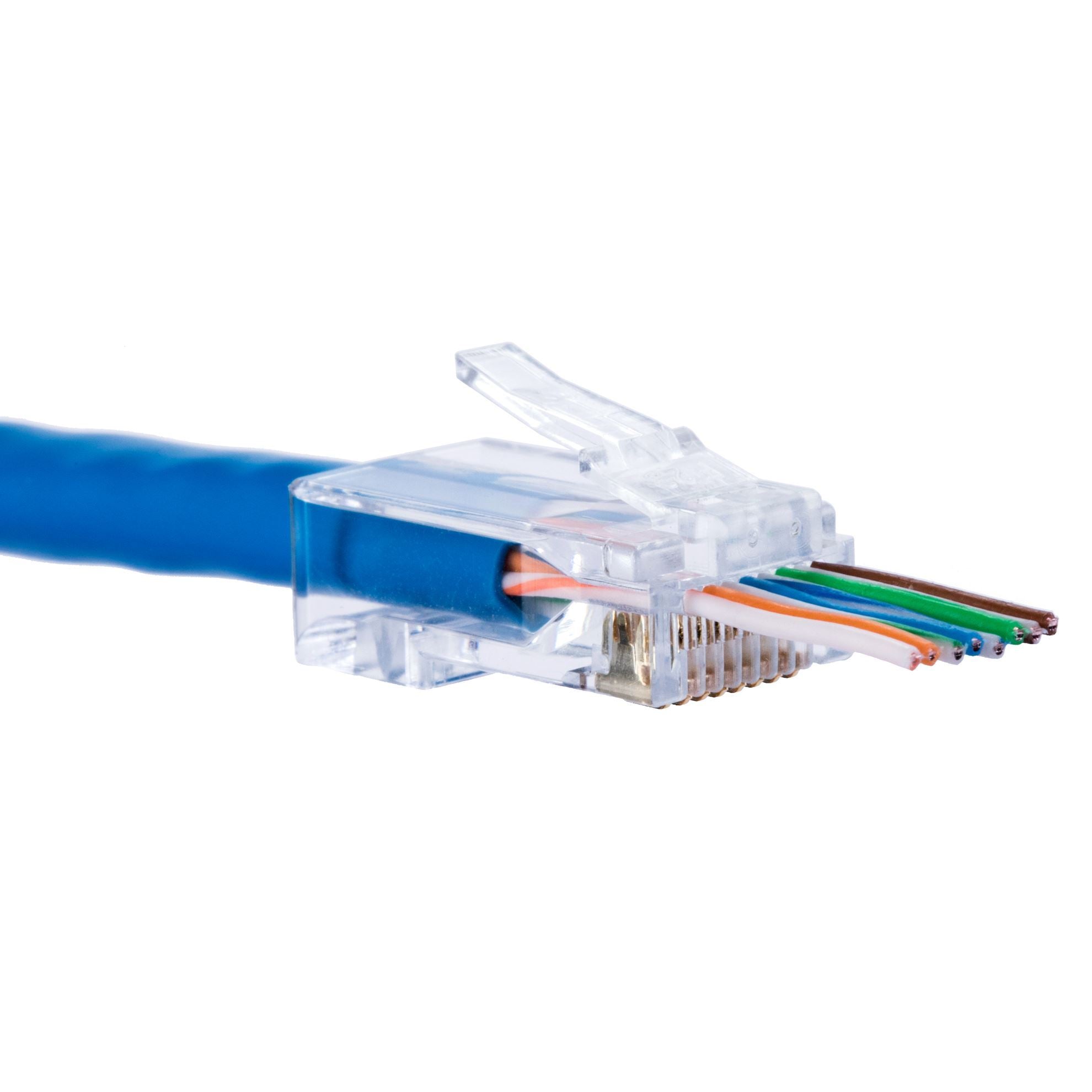

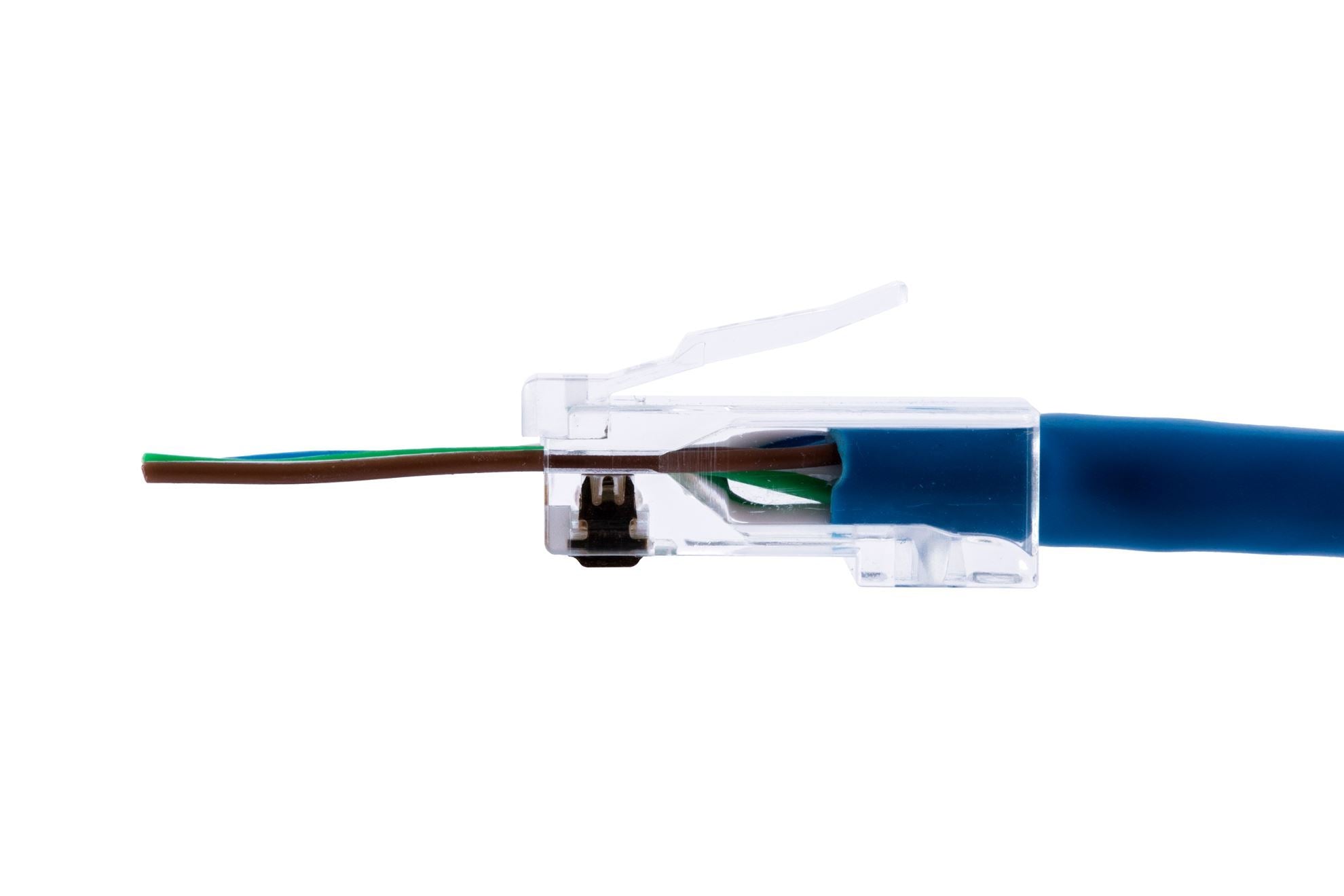

These pass-through RJ45 plug connectors are a type of RJ45 connector that allows the cable to pass through the center of the connector. This makes it easier to terminate the cable, as the wires do not need to be stripped as far. Pass-through RJ45 connectors are typically used for patch cables and other short cables. Pass-through RJ45 plugs are also known as pass through, push through or push-through.

Advantages:

• Easier to terminate: As the wires do not need to be stripped as far, pass-through RJ45 connectors are easier to terminate than traditional RJ45 connectors.
• Less likely to damage the cable: As the wires are not stripped as far, they are less likely to be damaged when terminating the cable.
• Better cable management: As the cable can pass through the center of the connector, it is easier to manage the cable.

Features:

FLUKE devices Tested.
Transparent polycarbonate.
Wire conductor up to 23AWG.
Supports Solid and Stranded Cables.
Compatible with “Platinum Tools” crimping/cutting tools.
Gold plated 50 Micron rated passthrough RJ45 connectors.
Meets or Exceeds ANSI/TIA568-D.2; ISO/ IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7.

Packaging: Bulk.
Sold as: Pack of 20.
Colour: Transparent.
Pack Size: 20 Pieces.
Network standard: Cat6.
Product Type: Cat6 Network Plugs.
Maximum conductor size: 1.05mm.
Conductor finish: Gold plated 50 Micron.
Cable type: Unshielded Twisted Pair (UTP).
Termination method. Pass through, Cut & Crimp.
Connector type: Male Modular 8P8C (8 Pole 8 Conductor / 8 position, 8 contact) RJ-45 Plug with latch down thumb clip for round, solid or stranded UTP cable.

Package includes: 1x 20x Cat6 UTP Push Pass Through RJ45 Plug Connectors.

Warranty & Returns:

14 Day 'change of mind' return in unused condition for a refund less shipping fees.
1 Year return to base refund or replace guarantee.

Questions & Answers:

Q Does it still need a crimping tool to attach to the cable?

A Yes, the "Cat6 UTP Push Through Plug, 3 Prong, 50 U" 20pc Pack still requires a crimping tool to attach the plug to the cable. While the push-through design makes it easier to ensure proper wiring, a crimping tool is necessary to secure the connection and ensure it functions correctly. You can find more an RJ45 crimp tool on our website here.
