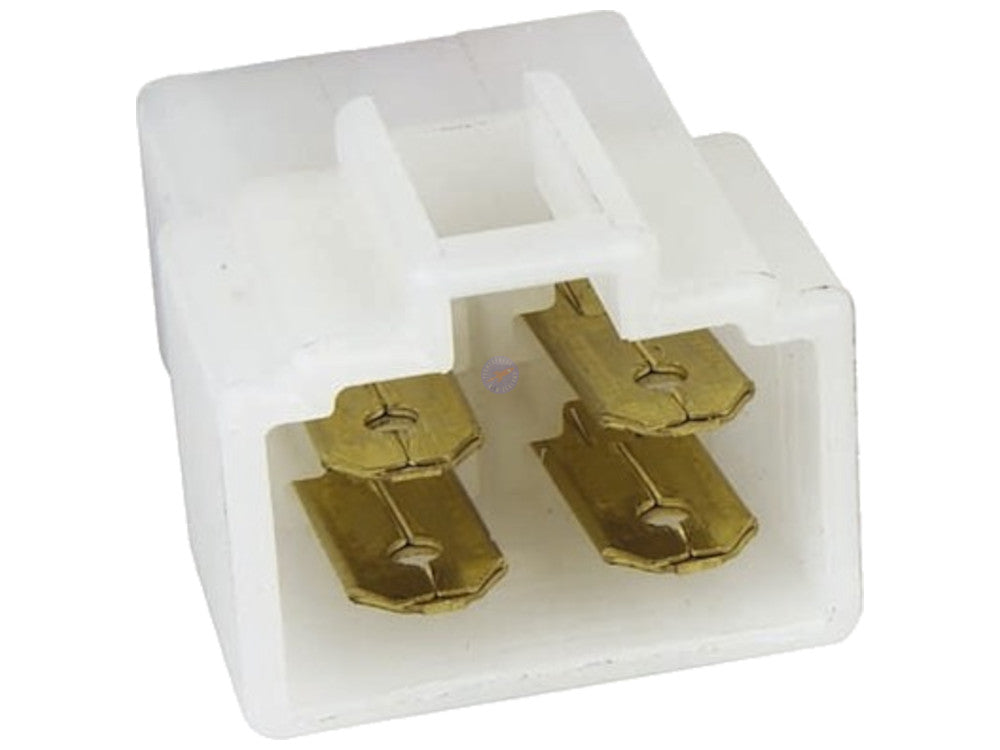

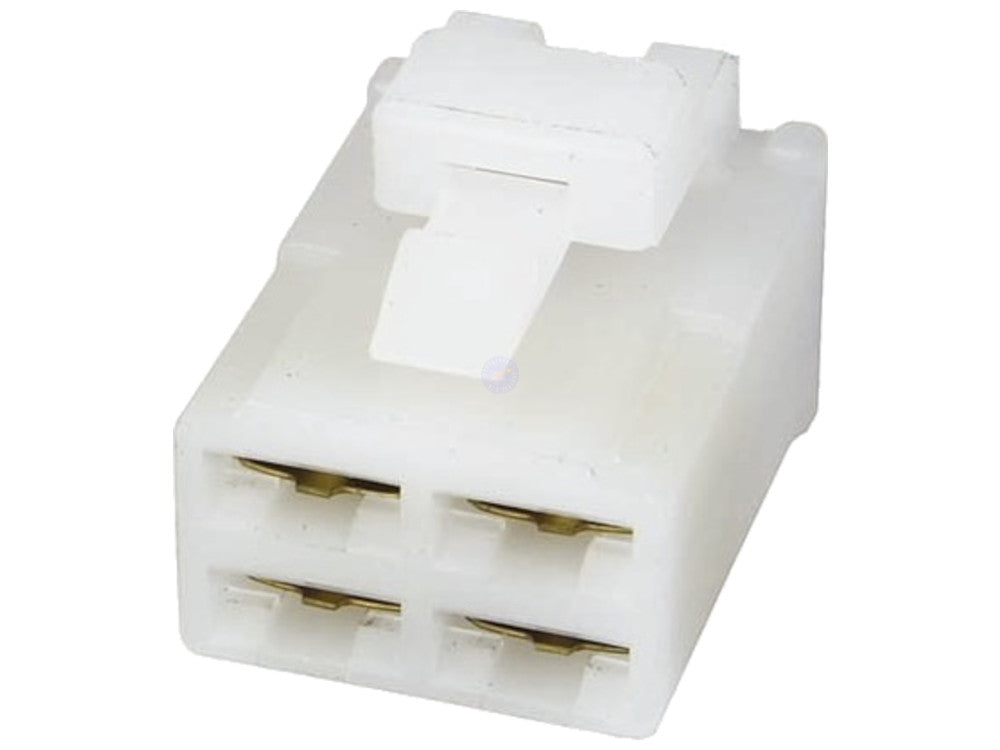

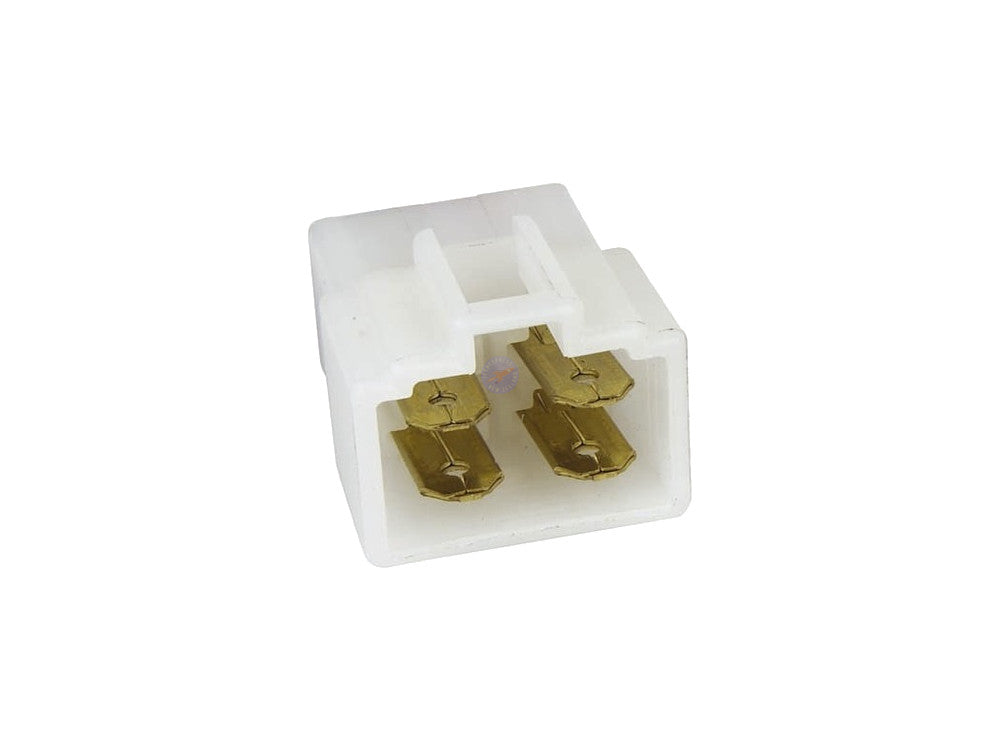

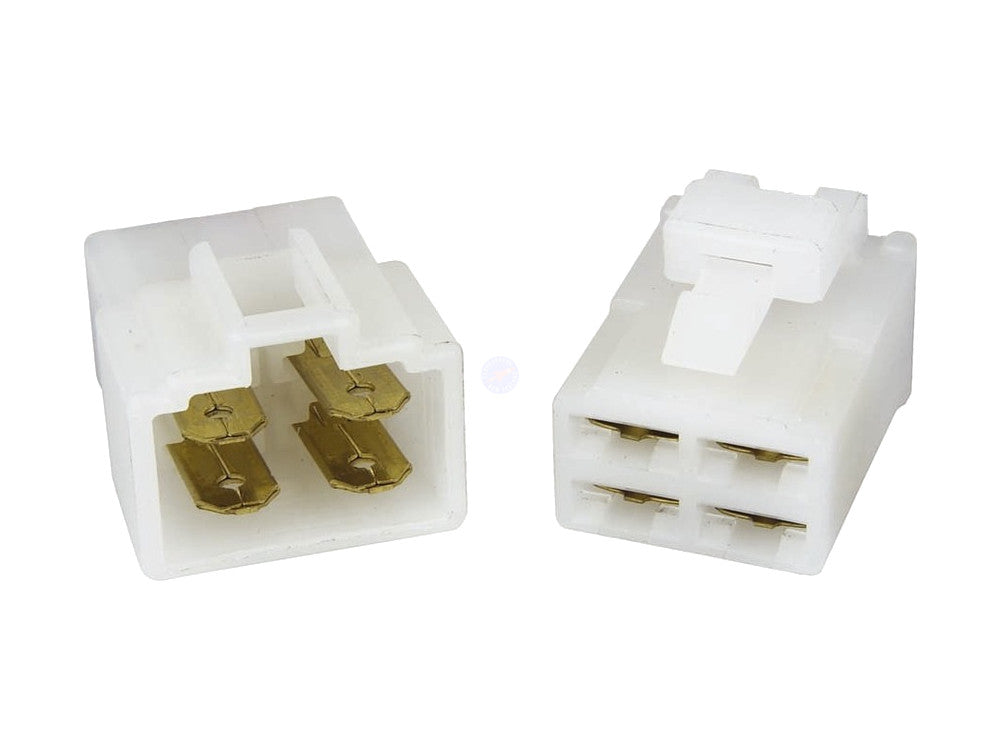

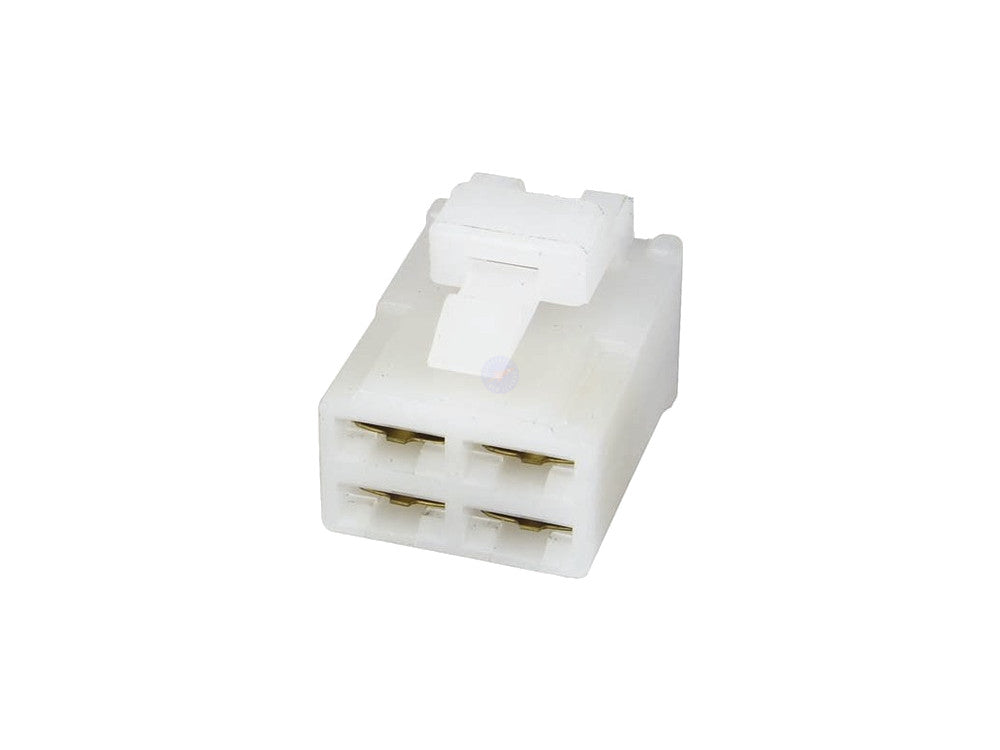

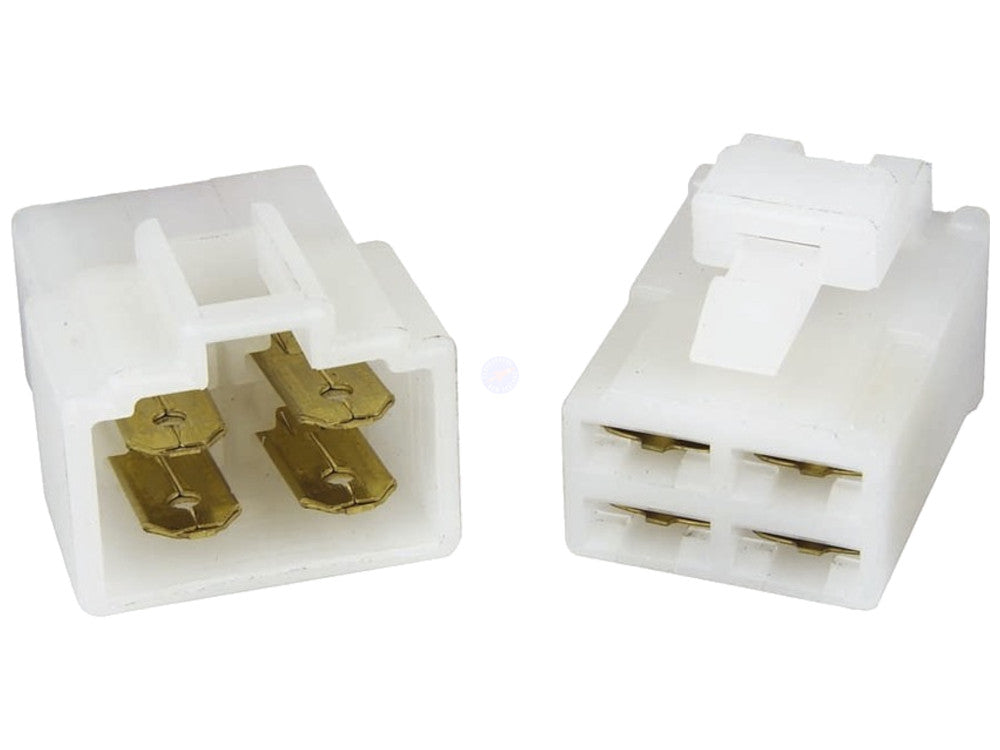

Automotive 4-Way Plug and Socket - 250 Series

Automotive 4-Way Plug/Socket - 250 Series.

This range of connectors is commonly used in automotive applications such as stereo and CB installations, or for replacements in existing wiring. The housings interlock and they come in 2, 3, 4 or 6 way sets. Each comes with plug, socket, and male and female locking spade lugs. This is a 4 Pin Kit.

• Temp range: -30 - 105degC.
• Typical application: low voltage vehicle wiring.
• Crimp terminals accept: 20-14awg wire (0.5-2.0mm^2).
• Max current: 15A with 14awg cable, 4A with 20awg cable.

Specifications:

Pack Quantity: 1.
Contacts / Pins: 4 Pin.
Case Material: Plastic.
Contact Material: Brass.
Attachment Method: Crimp.
Device: Plug and Socket Set.
Plug or Socket Type: 250 Series Automotive.
