AS5600 12-bit Magnetic Rotary Position Encoder Module

AS5600 12-bit Magnetic Rotary Position Encoder Module

Product code: AS5600-MAG-ENC-NZ
$14.99 NZD
$14.99 NZD
Sale Sold out
GST included. $7.79 flat-rate shipping to all New Zealand addresses. Unlimited items.
Questions about this product? Ask us Need help choosing or checking compatibility?

Build a contactless rotary control with this AS5600 magnetic position encoder module. Position the included magnet over the sensor to read its angle as it turns.

  • 12-bit position data: 4096 angle values across a full 360° rotation via I²C.
  • Flexible output: configurable analog or PWM signal on the OUT pin.

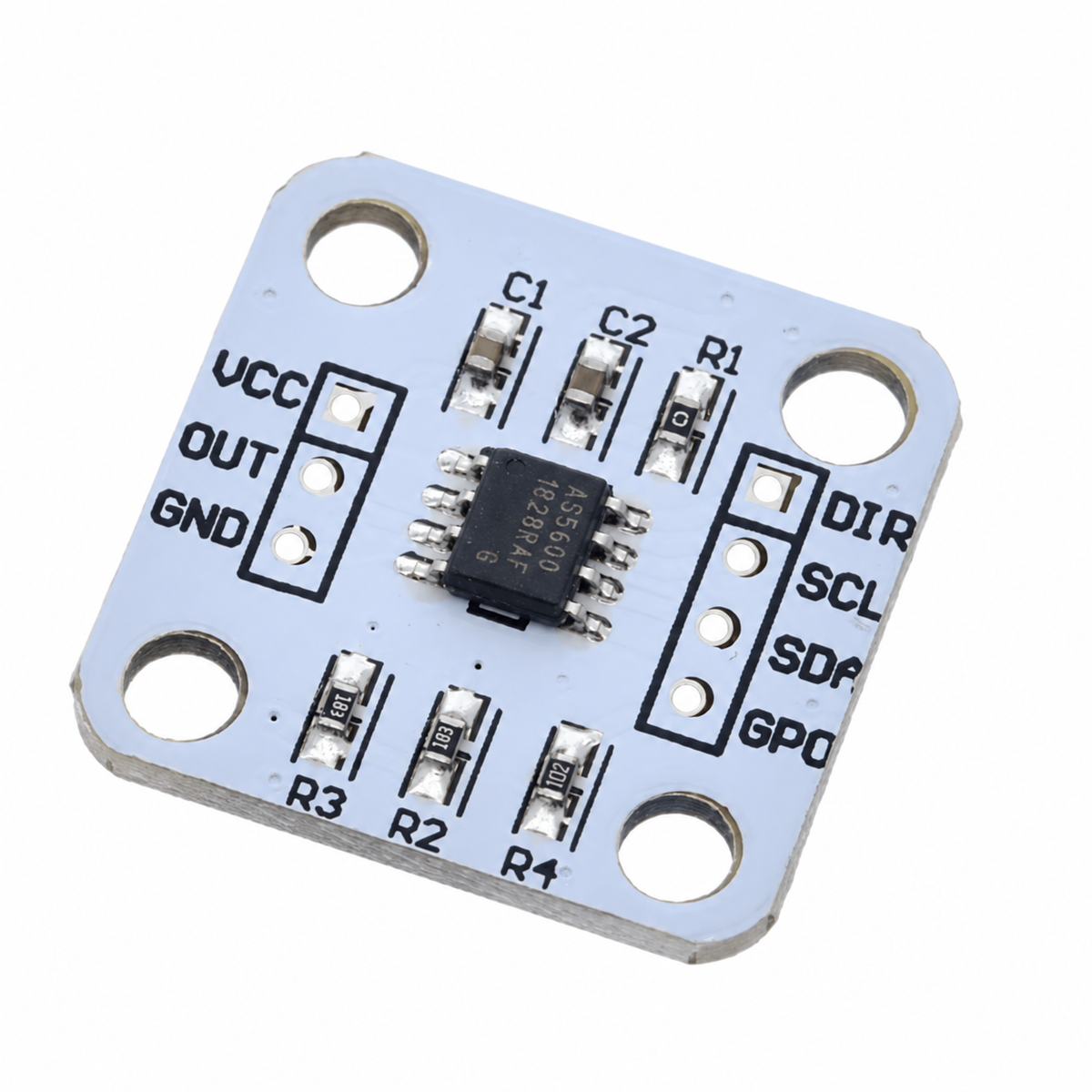

  • Clearly marked connections: VCC, GND, SDA, SCL, OUT and DIR pads on the pictured breakout board.

A useful choice for rotary controls, robot joints, motor shafts and other maker projects where mechanical contact is undesirable. Check your controller voltage and the board pinout before wiring.

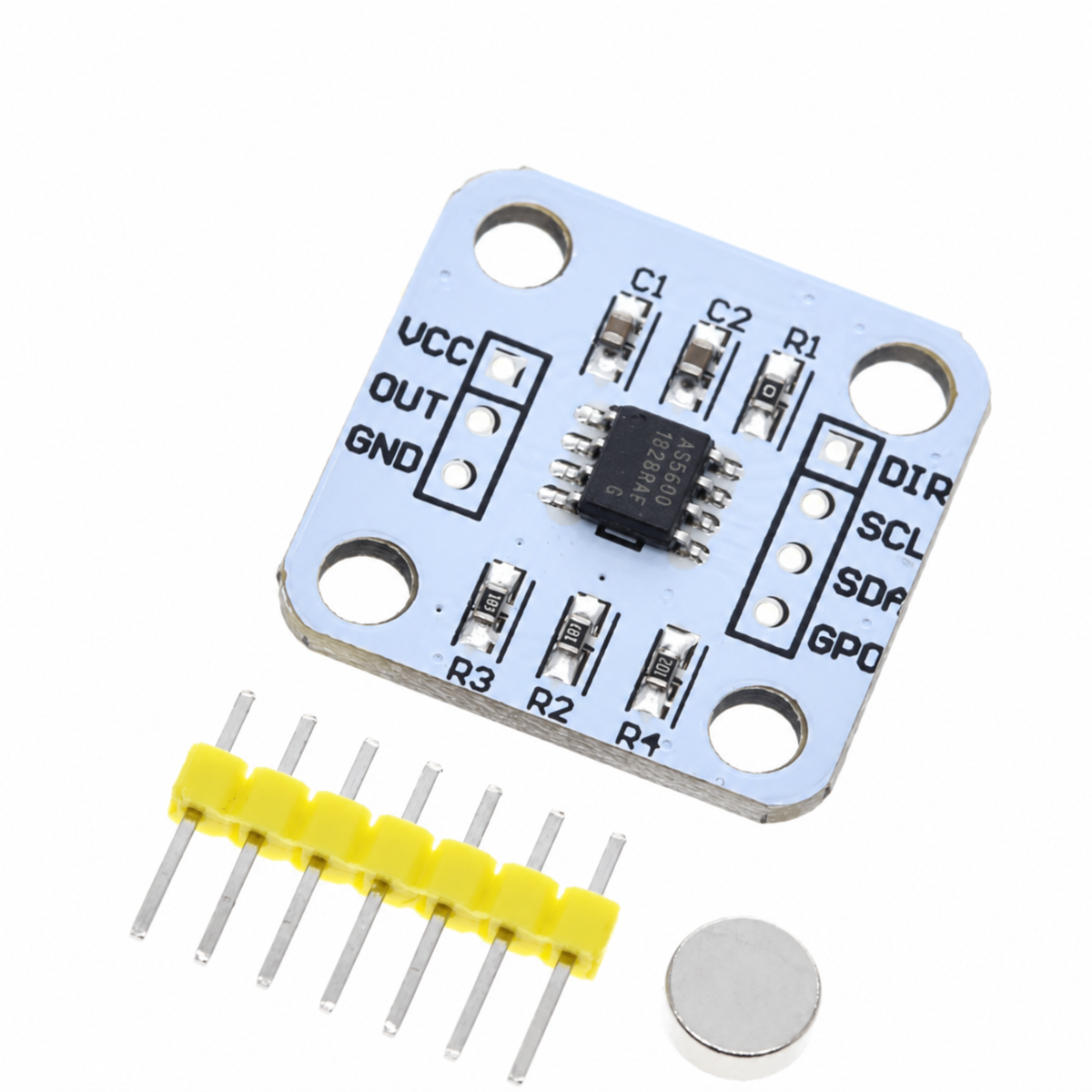

Contents: AS5600 encoder module, loose 7-pin header, and magnet.
