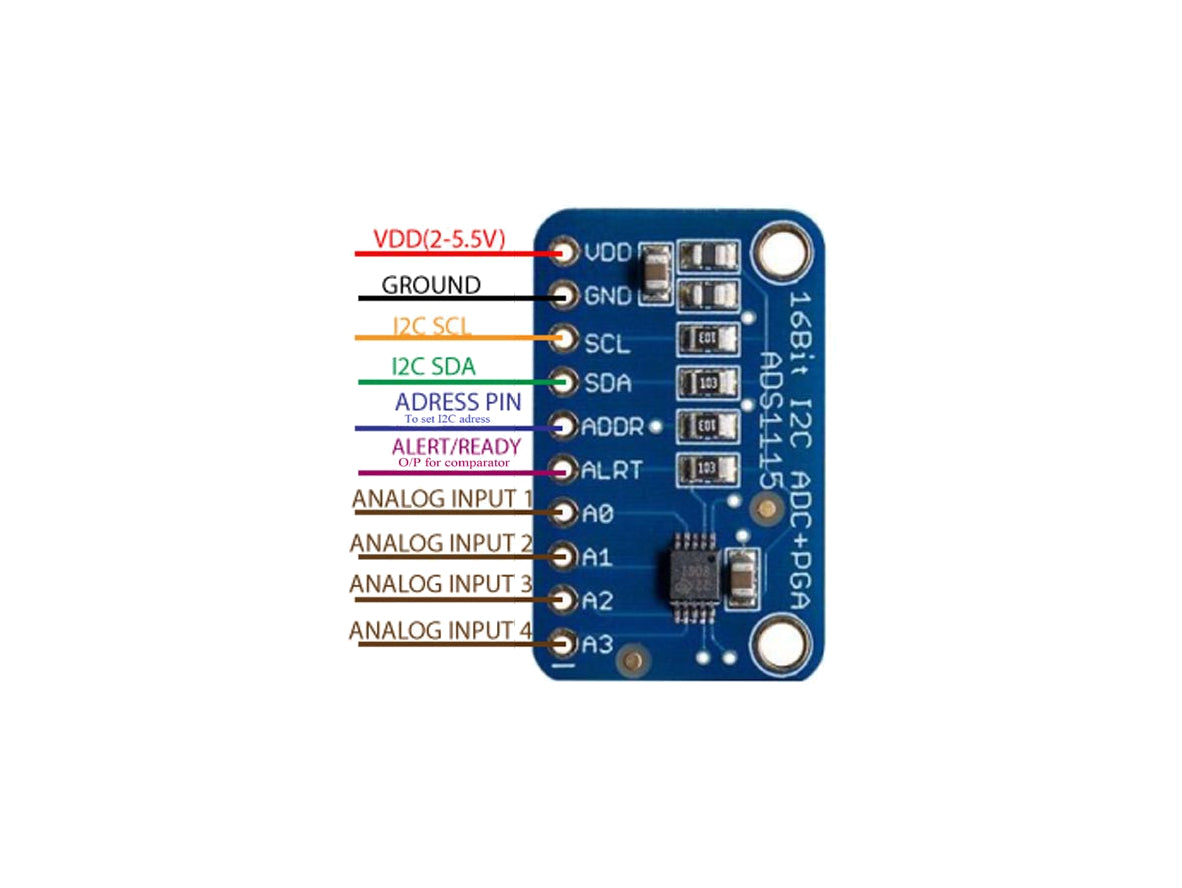

ADS1115 16-Bit I²C Analog-to-Digital Converter (ADC) Module – 4-Channel High-Precision Input

The ADS1115 16-Bit I²C ADC Module is a high-precision analog-to-digital converter based on the Texas Instruments ADS1115 IC. It allows microcontrollers and single-board computers without accurate analog inputs to read analog voltage signals with excellent resolution and stability.

With 16-bit resolution, a programmable gain amplifier (PGA), and a simple I²C interface, the ADS1115 is ideal for sensor measurement, battery monitoring, and precision electronics projects.

Commonly used with Arduino, ESP32, ESP8266, and Raspberry Pi platforms.

The ADS1115 16-Bit I²C ADC Module is a high-precision analog-to-digital converter based on the Texas Instruments ADS1115 IC. It allows microcontrollers and single-board computers without accurate analog inputs to read analog voltage signals with excellent resolution and stability.

With 16-bit resolution, a programmable gain amplifier (PGA), and a simple I²C interface, the ADS1115 is ideal for sensor measurement, battery monitoring, and precision electronics projects.

Commonly used with Arduino, ESP32, ESP8266, and Raspberry Pi platforms.

Key Features

16-bit resolution ADC for high-accuracy readings

4 analog input channels

- 4 × single-ended inputs or
- 2 × differential input pairs
I²C interface (SDA / SCL)

Programmable Gain Amplifier (PGA)

- Voltage ranges from ±256 mV to ±6.144 V

Up to 860 samples per second
Low noise and stable measurements
Compatible with 3.3 V and 5 V logic systems (module dependent)

Why Choose an ADS1115?

• Raspberry Pi has no built-in analog inputs
• ESP32/ESP8266 ADCs can be noisy or inconsistent
• Provides significantly higher resolution than Arduino’s internal ADC
• Ideal for low-voltage and precision sensor applications

Applications

• Sensor interfacing (temperature, light, pressure, gas, moisture)
• Battery voltage monitoring
• Current shunt measurement
• Data logging systems
• Raspberry Pi analog input expansion
• Arduino and ESP32 precision measurement projects
• DIY electronics and prototyping

Package Includes: 1× ADS1115 16-Bit ADC Module.
