8mm Non-Insulated Eye Terminal 10mm2 - Pk 8

  • $8.19

Ask a Question

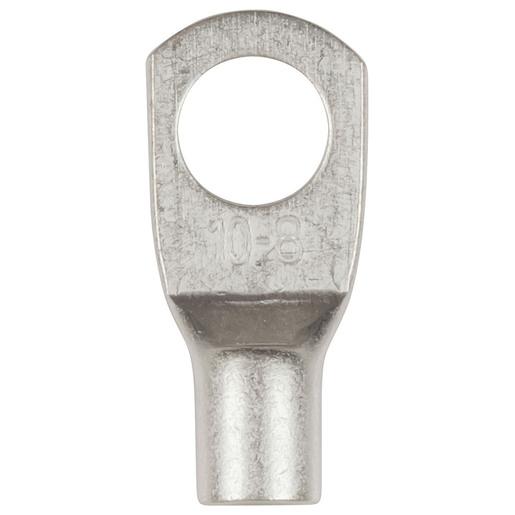

8mm Non-Insulated Eye Terminal 10mm2 - Pk 8.

Non-insulated eye terminals for a variety of automotive, battery, electronic or solar applications. Hex crimp fitting for connection to cable. Current rating: 40A.

A packet of 8x 8mm non-insulated 40A eye terminal connectors for cable sized up to 10mm squared. These lugs are best attached via a specialized crimping tool for optimum conductivity and secure fit.


Length: 27mm.
Width: 12.4mm.
Height: 7mm.
Type of quick connector: Eye.
Terminal Size: 8mm.
Wire Gauge: 8 AWG.
Cable Entry Diameter: 10mm.
Internal Terminal Size (Eye / Fork): 8mm.
Insulation: Non Insulated.
Pack Quantity: 8 Pieces.
Wire Size (Cross Section): 10mm².
Device: Terminal.
Contact Material: Tin Plated Copper.

Package includes: 8x 8mm Non-Insulated Eye Terminal 10mm2.
