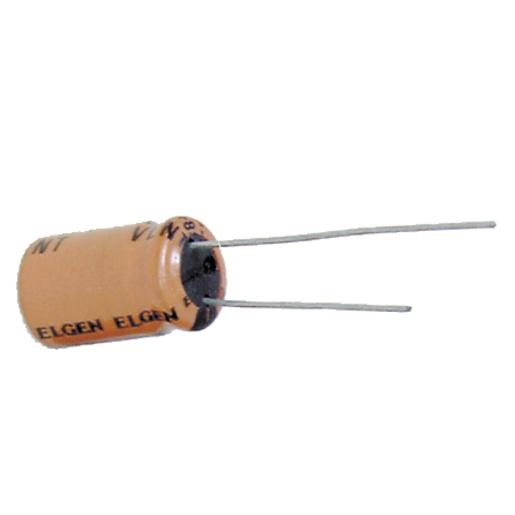

47uF 25VDC Low Leakage Electrolytic Capacitor

47uF 25VDC Low Leakage Electrolytic Capacitor.

Value: 47.0uF Voltage: 50V Lead Spacing mm: 3.5.

85ºC rated Leakage characteristics similar to tantalum caps, but at a lower price.

An electrolytic capacitor uses and electrolyte (a liquid or gel containing a high concentration of ions) to achieve a larger capacitance than the other capacitor types. These electrolytic capacitors are polarized, meaning that the voltage on the positive terminal must always be greater than the voltage on the negative terminal. They are commonly used as filters in devices in various power supplies to reduce the voltage ripple as well as input and output smoothing as an LPF.

Specifications:

Capacitor type: Electrolytic Low Leakage.
Polarised Capacitor: Yes.
Item capacitance: 47µF.
DC Voltage: 25V.
Operating Temperature: 85°C.
Height: 11mm.
Diameter: 8mm.
Component Type: Electrolytic Capacitor.
Pack Quantity: 1.
Pitch: 3.5mm.
Passive mount type: Through Hole.
Passive connector type: Solder Legs.
Component package: Radial.
Passive number of legs: 2.
Passive marking code: Printed.

Package incldues: 1x 47uF 25VDC Low Leakage Electrolytic Capacitor.
