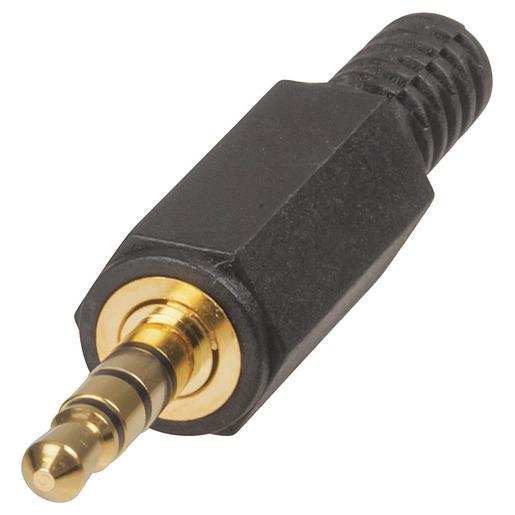

3.5mm Gold Plug - 4 pole

3.5mm Gold Plug - 4 pole.

Used in audio applications....

This Plug has a range of uses for Audio, Video and Computer Applications.
The Audio application generally use two common wiring standards.

Some Example of a Wiring Configuration

From Apple (CTIA) & Computer Headsets
Tip (Left), Ring1 (Right), Ring 2 (Ground), Sleeve (Mic)
From Nokia / Samsung (OMTP)
Tip (Left), Ring1 (Right), Ring 2 (Mic), Sleeve (Ground)

AV - Cables is wired for Audio Left + Right and Video
Camcorder AV
Tip (Left), Ring1 (Viideo), Ring 2 (Ground), Sleeve (Right)
Apple AV
Tip (Left), Ring1 (Right), Ring 2 (Ground), Sleeve (Video)

For Computer to USB (Android / IOS Devices):

Tip (Power) +5V),
Ring1 (Data D-),
Ring 2 (Data D+),
Sleeve (Ground 0V)

Specifications:

Plug or Socket Type: 3.5mm 4 Pole.
Device: Plug
Pack Quantity: 1pc.
Contacts / Pins: 4 Contacts.
Case Material: Plastic.
Contact Material: Gold Plated.

Package includes: 1x 3.5mm Gold Plug - 4 pole.
