220uF 25VDC Low ESR Electrolytic Capacitor

PRODUCT CODE: TXWS4353
  • $1.00

Ask a Question

220uF 25VDC Low ESR Electrolytic Capacitor.

An electrolytic capacitor uses an electrolyte (a liquid or gel containing a high concentration of ions) to achieve a large capacitance than the other capacitor types. These electrolytic capacitors are polarized, meaning that the voltage on the positive terminal must always be greater than the voltage on the negative terminal. They are commonly used as filters in devices in various power supplies to reduce the voltage ripple as well as input and output smoothing as an LPF.

Features:

• Impedance: 0.13.
• Low D.C. leakage current.
• Ripple Current mA rms: 640.
• Radial leads on standard pitch.
• Impedance: max at 20°C 100kHz.
• Stable, low impedance characteristics.
• Ripple current measured at 105°C 100kHz.
• Extended life - high reliability withstanding 2,000 to 4,000 hours load life at 105°C.

Specifications:

Capacitor type: Electrolytic Low ESR.
Polarised Capacitor: Yes.
Item capacitance: 220µF.
DC Voltage: 25V.
Operating Temperature: 105°C.
Height: 12mm.
Diameter: 8mm.
Component Type: Electrolytic Capacitor.
Pack Quantity: 1pc.
Passive mount type: Through Hole.
Passive connector type: Solder Legs.
Component package: Radial.
Passive number of legs: 2.
Passive marking code: Printed.

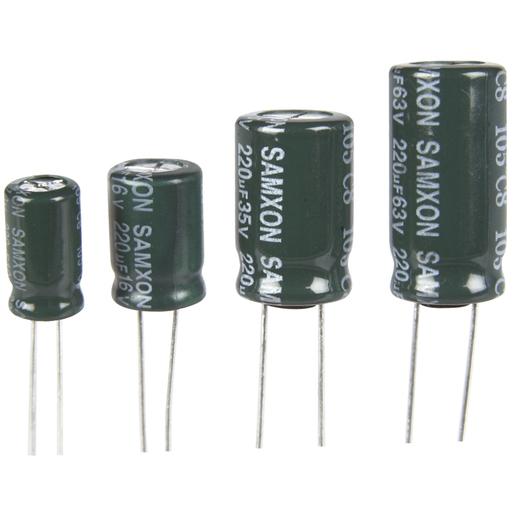

Image is for illustrative purposes only. Due to camera, lighting, monitor and supplier variations, colours may vary.

Sold as: Each.
Packaging: Bulk.

Package includes: 1x 220uF 25VDC Low ESR Electrolytic Capacitor.
