2.8-inch ILI9341 SPI TFT LCD Display 240x320 - Non-Touch

This 2.8-inch colour TFT LCD module adds a 240 x 320 pixel display to a microcontroller project through an SPI interface. Use it for menus, sensor readings, status screens and simple graphics. Touch input is not supported on the supplied version.

Key Features

• ILI9341 display controller with SPI communication.
• Compact colour display for custom electronic projects.

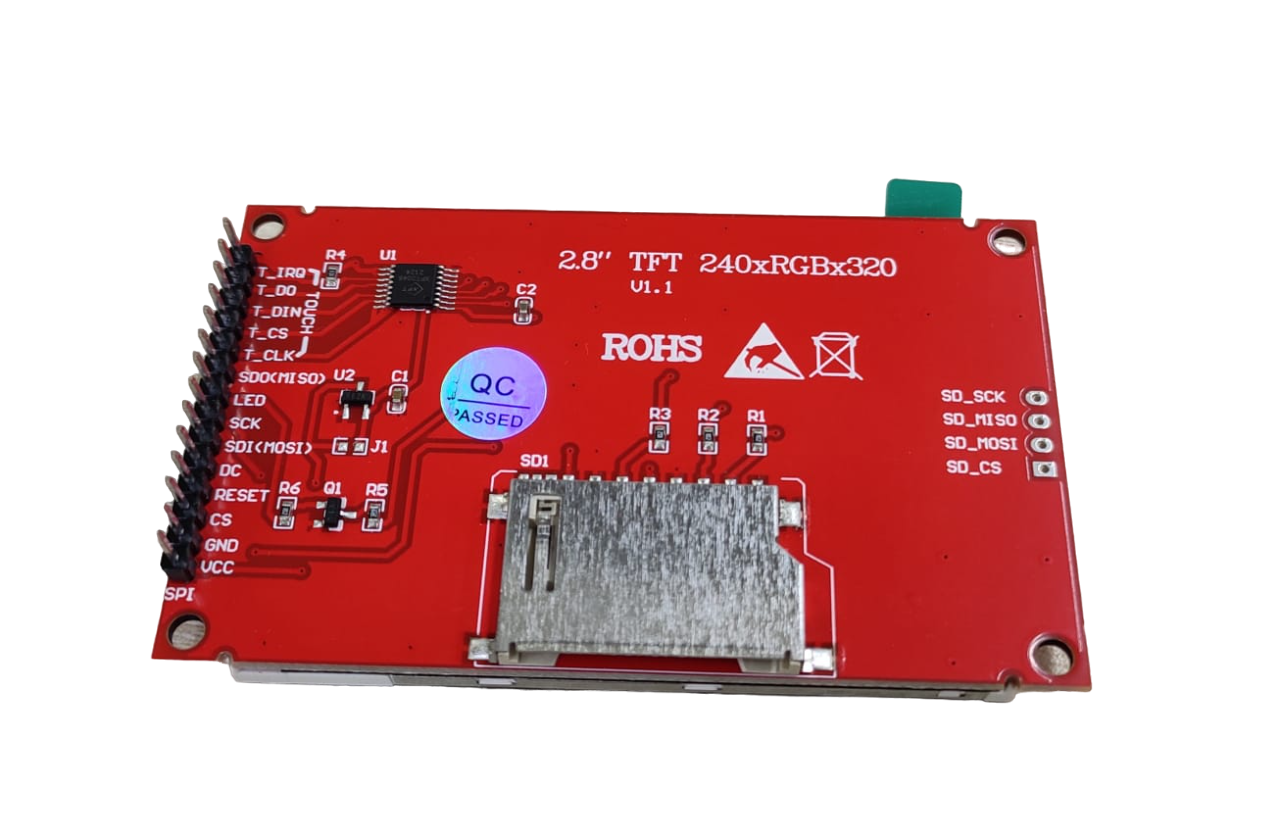

• On-board SD card slot for projects that need removable storage.

Technical Specifications

• Product type: TFT LCD display module.
• Display size: 2.8 inches diagonally.
• Resolution: 240 x 320 pixels.
• Display controller: ILI9341.
• Interface: SPI (Serial Peripheral Interface).
• Supply voltage: 3.3 V or 5 V.
• Logic signals: use 3.3 V logic; level shifting is required for 5 V controller outputs.
• Board dimensions: 86 x 50 mm.
• Storage connection: SD card slot.
• Touch input: not supported.

Compatibility and Setup

Requires a host microcontroller, suitable wiring and display software configured for the ILI9341 controller. Follow the board's printed pin labels and connect a common ground. Select the correct SPI, chip-select, data/command and reset pins in your software.

The 5 V supply option does not mean the signal pins tolerate 5 V. Disconnect power before wiring and use suitable level shifting for a controller with 5 V outputs. This module is not an HDMI or USB monitor.

Package Includes

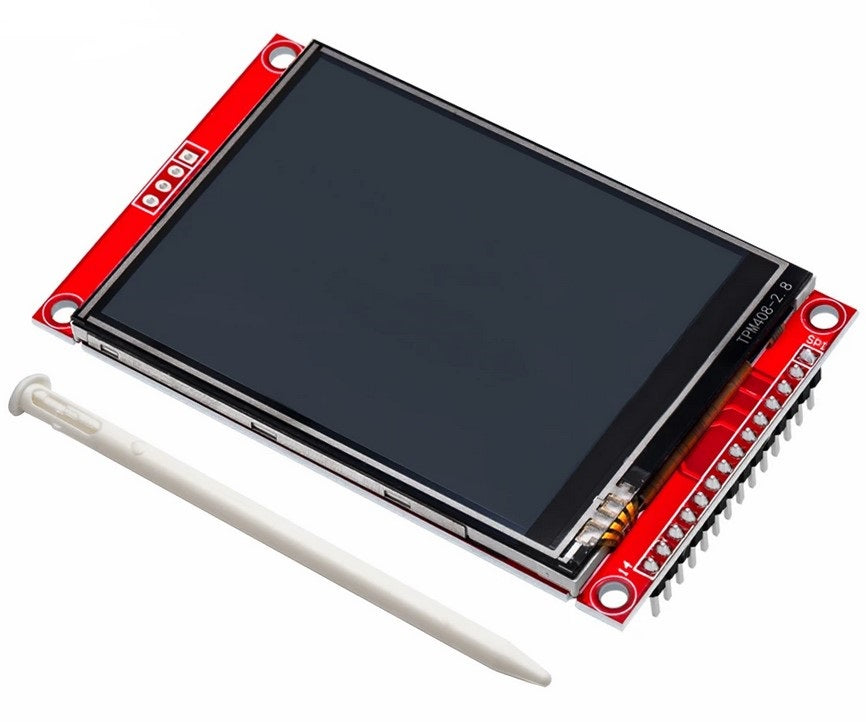

1 x 2.8-inch ILI9341 SPI TFT LCD display module.

1 x stylus.

Sold individually. Condition: new. Microcontroller, SD card, power supply and connecting wires are not included.
