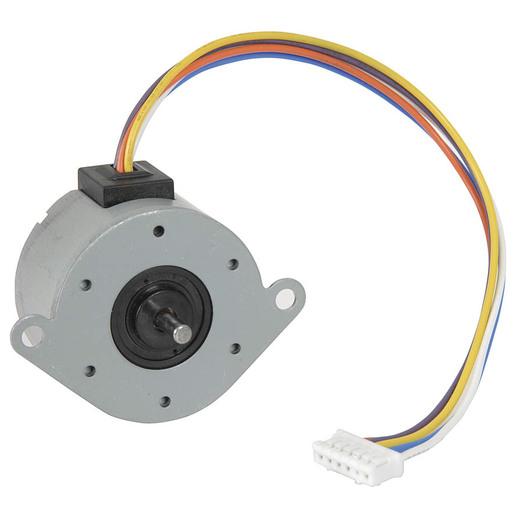

12VDC 48 Step / 7.5° Stepper Motor

Product code: TXWS5189

$32.39 NZD

Sale Sold out

GST included. $7.79 flat-rate shipping to all New Zealand addresses. Unlimited items.

12VDC 48 Step / 7.5° Stepper Motor.

• Standard 48 step / 7.5° design.
• Flange mount 3.0mm hardened steel shaft.

Specifications:

• Phases: 4.
• DC Voltage : 12V.
• Stepping angle: 7.5°.
• Rated voltage: 12VDC.
• Steps per revolution: 48.
• Holding torque: 700g/cm.
• Rated current: 1.1A/phase.
• Motor Nominal Voltage : 12V.
• Max. efficiency current : 1.1A.
• Resistance per winding: 20 ohms.
• Starting frequency: 600pps (max).
• Drive method: Unipolar chopper drive.

1 Year Warranty.
