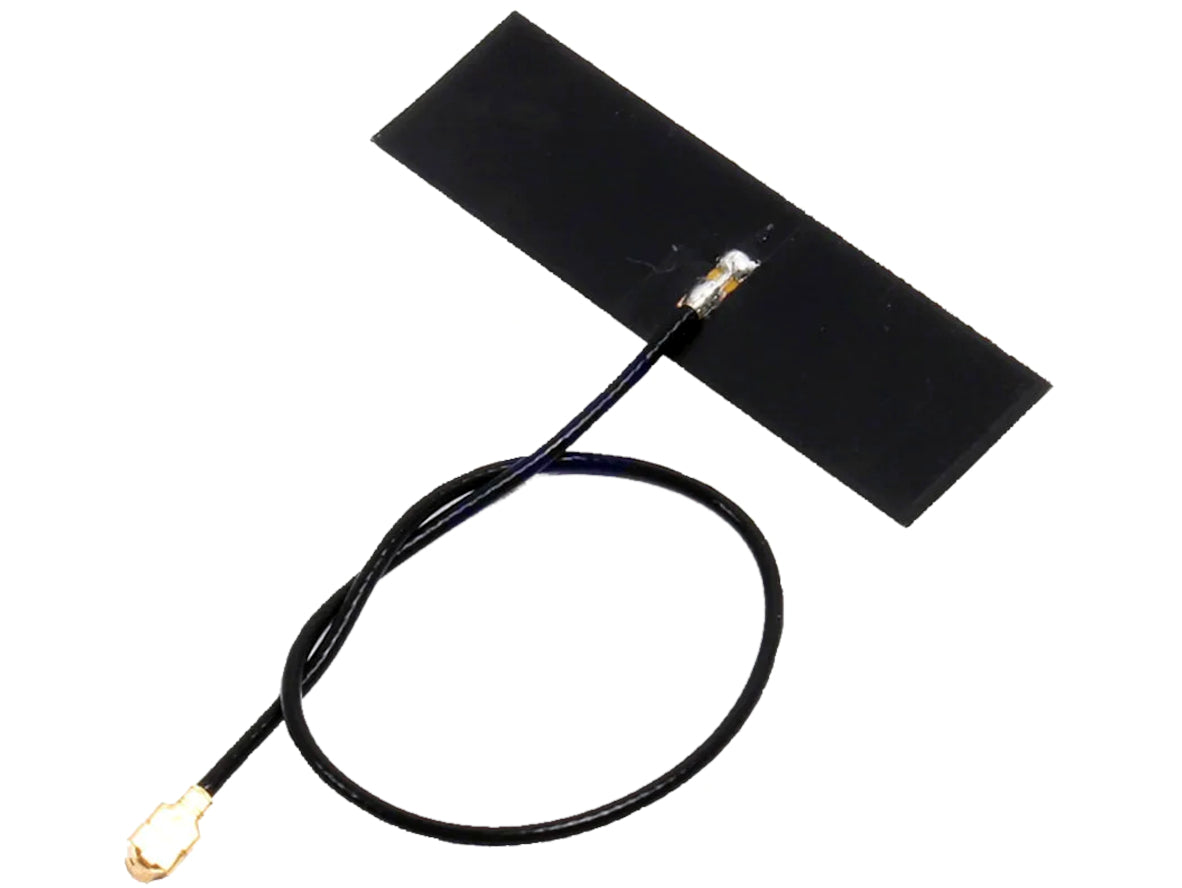

Internal 12cm 2.4GHz WiFi Antenna with IPEX Connector

The Internal 12cm 2.4GHz WiFi Antenna with IPEX Connector is also known as a 2.4GHz PCB WiFi Antenna, IPEX MHF1 Antenna, or Internal WiFi Antenna Module.

Designed for optimal performance in compact spaces, this antenna is ideal for DIY electronics, IoT applications, and embedded systems.

• Compact Design: 12cm length fits seamlessly into tight enclosures and embedded systems.
• Versatile Compatibility: Works with ESP32, Raspberry Pi, Arduino, and other microcontrollers.
• Easy Integration: IPEX connector allows for straightforward installation without soldering.

Also known as an internal WiFi antenna, FPC WiFi antenna, 2.4GHz IPEX antenna, flexible PCB antenna, embedded WiFi antenna, high-gain internal antenna, IPEX connector antenna, 12cm WiFi antenna, 5dBi FPC antenna, internal 2.4GHz antenna.

Technical Specifications:

Colour: Black.
Sold as: Each.
Length: 12cm.
Packaging: Bulk.
Frequency Range: 2400–2500 MHz.
Gain: 3dBi.
Impedance: 50 Ohms.
VSWR: ≤2.0.
Polarisation: Vertical.
Connector Type: IPEX MHF1.
Cable Length: 12cm.
Cable Type: 1.13mm coaxial.
Antenna Type: Flexible Mylar PCB.
Radiation Pattern: Omnidirectional.
Operating Temperature: -40°C to +85°C.
Product Code: 2G4-WIFI-ANT-12CM-IPEX-NZ.
Product Type: Internal WiFi Antenna.
Applications: Applications: IoT, ESP32, Raspberry Pi, DIY Wireless, Embedded.
Product Description: Internal 12cm 5dBi 2.4GHz WiFi FPC Antenna with IPEX Connector.
Product Category: Antennas.

Package includes: 1x Internal 2.4GHz WiFi Antenna with IPEX Connector.

*Does not include a WiFi module, adapter cables, or other mounting hardware. The image is for illustrative purposes only. Due to variations in camera settings, lighting, manufacturing processes, monitors, and supply, colours may differ. Product appearance and specifications are subject to change without notice.
