30A 12V/24V PWM Solar Charge Controller with LCD Display and USB
30A 12V/24V PWM Solar Charge Controller with LCD Display and USB
Couldn't load pickup availability

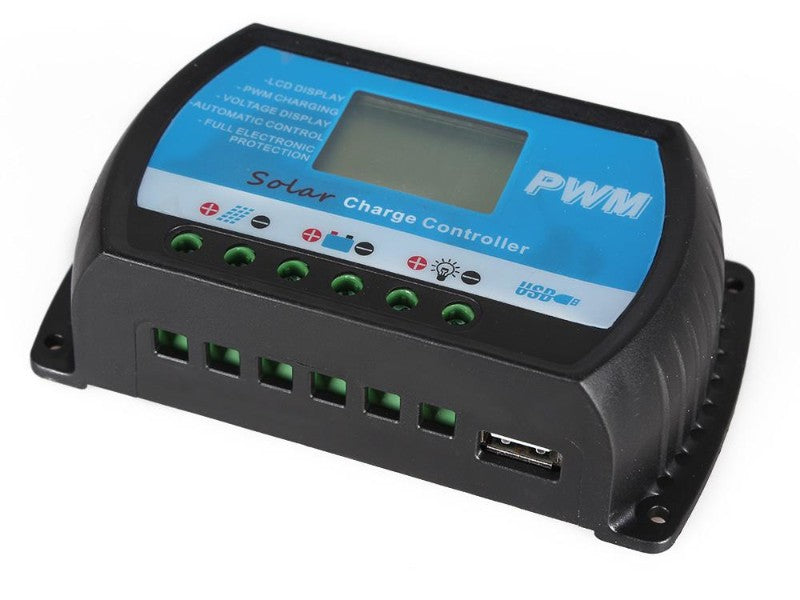

Control charging in a small solar battery setup with this RTD1230 30A 12V/24V PWM Solar Charge Controller, designed to sit between a suitable solar panel and battery system.
The controller is marked for 12V/24V 30A + USB operation and has a built-in LCD display for checking system information. The front connection area includes screw terminals for battery, solar panel and load/output wiring, plus a single USB Type-A output port for suitable 5V devices.
This is a practical solar regulator for low-voltage direct current projects such as caravan solar, camping power, shed lighting, small battery charging systems and other basic off-grid solar setups.
Key Features
• RTD1230 solar charge controller
• 12V/24V 30A + USB
• PWM charge controller design

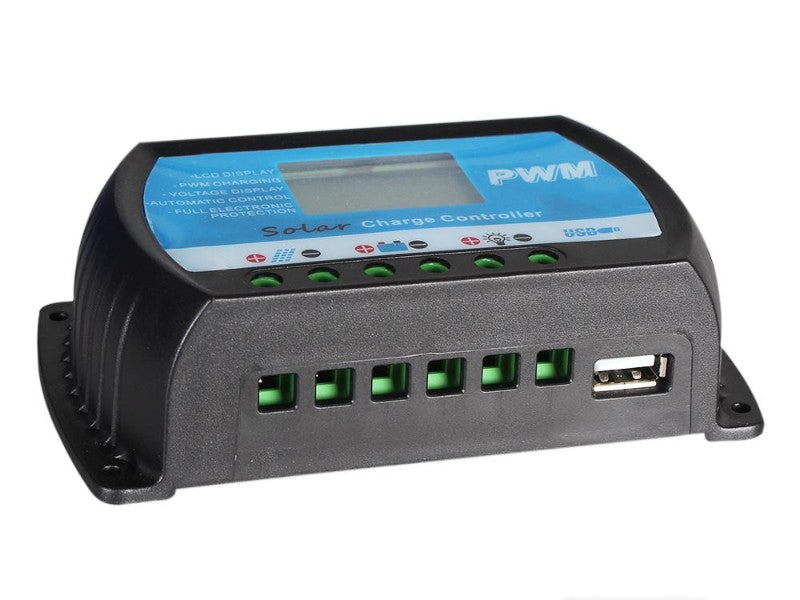

• LCD display on top panel
• 1x USB Type-A output port

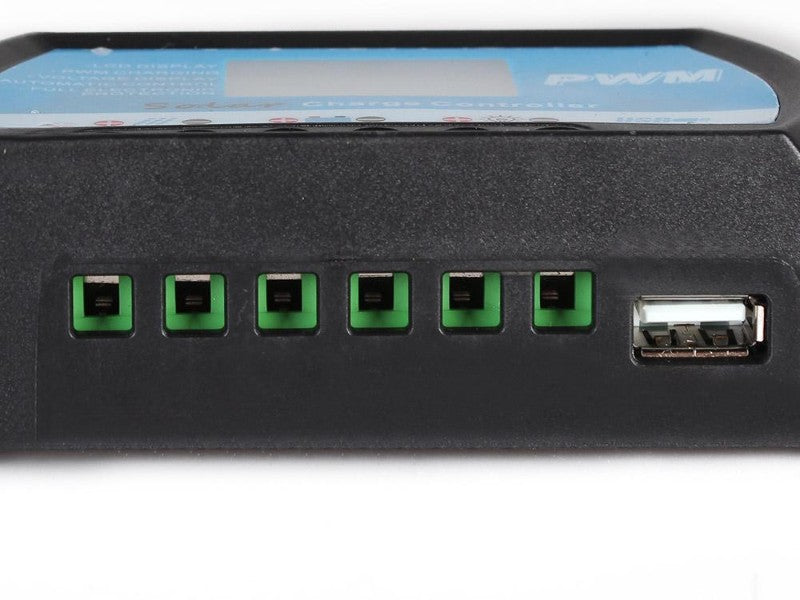

• Screw terminal connections for battery, solar panel and load/output wiring
• Terminal icons shown for battery, solar panel and load/output connection points

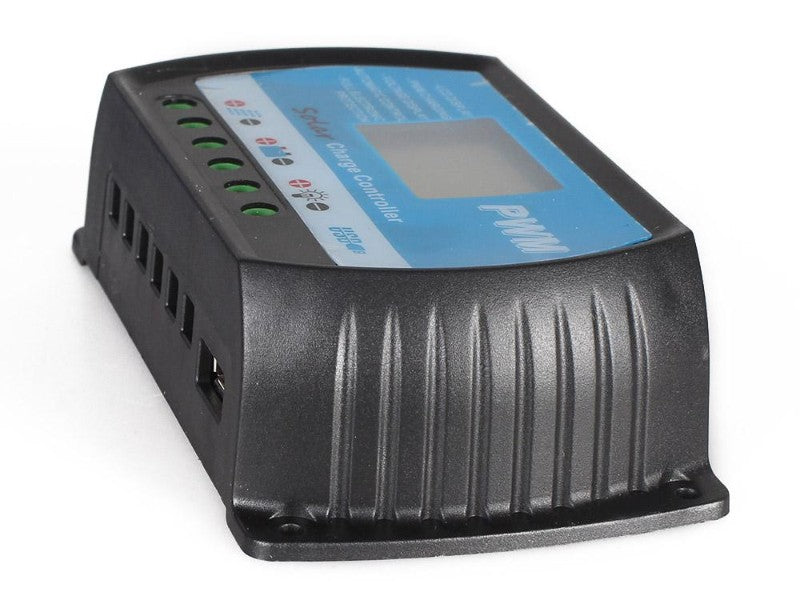

• Integrated mounting tabs with screw holes
• Black housing with blue and white top label
• Suitable for small low-voltage solar battery charging projects when correctly matched with the battery, solar panel, wiring and fuse protection
Compatibility Notes
• Designed for 12V and 24V direct current solar battery systems
• Use with a suitable photovoltaic solar panel and compatible battery system
• Battery type must be confirmed from the supplied manual before use
• Do not use with lithium or lithium iron phosphate batteries unless the supplied manual specifically confirms support
• Not a Maximum Power Point Tracking controller
• Not for 230V mains power
• Not a complete solar kit
• A suitable direct current fuse or circuit breaker should be installed close to the battery on the positive cable
• Use correctly rated cable, terminals, fuses and weather protection for the installation
Technical Specifications
• Model: RTD1230
• Product Type: Solar charge controller
• Charging Method: Pulse Width Modulation
• Rated Current: 30A
• System Voltage: 12V / 24V
• Display: LCD display
• Universal Serial Bus Output: 1x USB Type-A output, exact current rating to be verified
• Terminal Layout: Battery, solar panel and load/output terminals
• Connection Type: Screw terminals
• Polarity Markings: Positive and negative symbols shown on front label
• Mounting Style: Integrated mounting tabs with screw holes
• Housing Colour: Black
• Top Label Colour: Blue and white
• Product Markings: LCD Display, PWM Charging, Voltage Control, Automatic Control, Full Electronic Protection
• Not Confirmed From Images: Battery chemistry, maximum solar input voltage, maximum solar input wattage, USB output current, fuse size, cable size, waterproof rating
• Included Items: 1x RTD1230 solar charge controller
• Condition: New
• Product Category: Solar panels and accessories
• Applications: Caravan solar, camping power, battery charging
Package Includes
• 1x RTD1230 30A 12V/24V PWM solar charge controller
• 1x user manual
*Does not include solar panel, battery, wiring, fuse or circuit breaker, mounting hardware, inverter, lights or direct current loads, installation tools. The image is for illustrative purposes only. Due to variations in camera settings, lighting, manufacturing processes, monitors, and supply, colours may differ. Product appearance and specifications are subject to change without notice.
Combine & Save. Explore our range of cables, parts and accessories. We offer bulk discounts to New Zealand-based businesses, schools, and government agencies — contact us for pricing on larger orders!
Important Installation Notes
• Connect the battery first so the controller can detect the system voltage correctly
• Then connect the solar panel
• Then connect the load/output if required
• Use a suitable direct current fuse or circuit breaker on the positive cable between the battery and controller
• The fuse should be installed as close to the battery as practical
• Always size the fuse to protect the cable, not just the controller
• Use correctly rated direct current cable, terminals and fuse hardware
• Installation should be carried out by someone familiar with low-voltage direct current solar wiring
Is this an MPPT solar controller?
No. This unit is marked as a PWM solar charge controller. It should not be described as a Maximum Power Point Tracking controller.
What model is this controller?
The product images show the model as RTD1230.
Does this have one USB port or two?
The product images show one USB Type-A output port.
Can this be used with lithium batteries?
Do not use this controller with lithium or lithium iron phosphate batteries unless the supplied manual specifically confirms compatibility. The product images do not confirm lithium battery support.
What battery types does it support?
Battery chemistry is not confirmed from the images. Please check the supplied manual before installation and use only with supported battery types.
Should I use a fuse with this solar charge controller?
Yes. A suitably rated direct current fuse or circuit breaker should be installed on the positive cable between the battery and the solar charge controller, as close to the battery as practical.
For a 30A controller, a 40A fuse or direct current circuit breaker is commonly used, provided the cable is also rated for that current.
Always size the fuse to protect the cable, not just the controller. Use correctly rated direct current cable, terminals and fuse hardware for your installation.
Can I connect this directly to 230V mains power?
No. This is for low-voltage direct current solar systems only. Do not connect it to 230V mains power.
Is this a complete solar kit?
No. This is the controller only. Solar panel, battery, wiring, fuse or circuit breaker, mounting hardware and loads are not included.
What order should I connect it in?
Connect the battery first, then the solar panel, then the load/output if required. When disconnecting, remove the load/output first, then the solar panel, then the battery.
Is it suitable for caravan or camping solar?
Yes, it may be suitable for small caravan, camping, shed or battery charging setups when correctly matched with the battery, solar panel, cable size, fuse protection and installation method.
